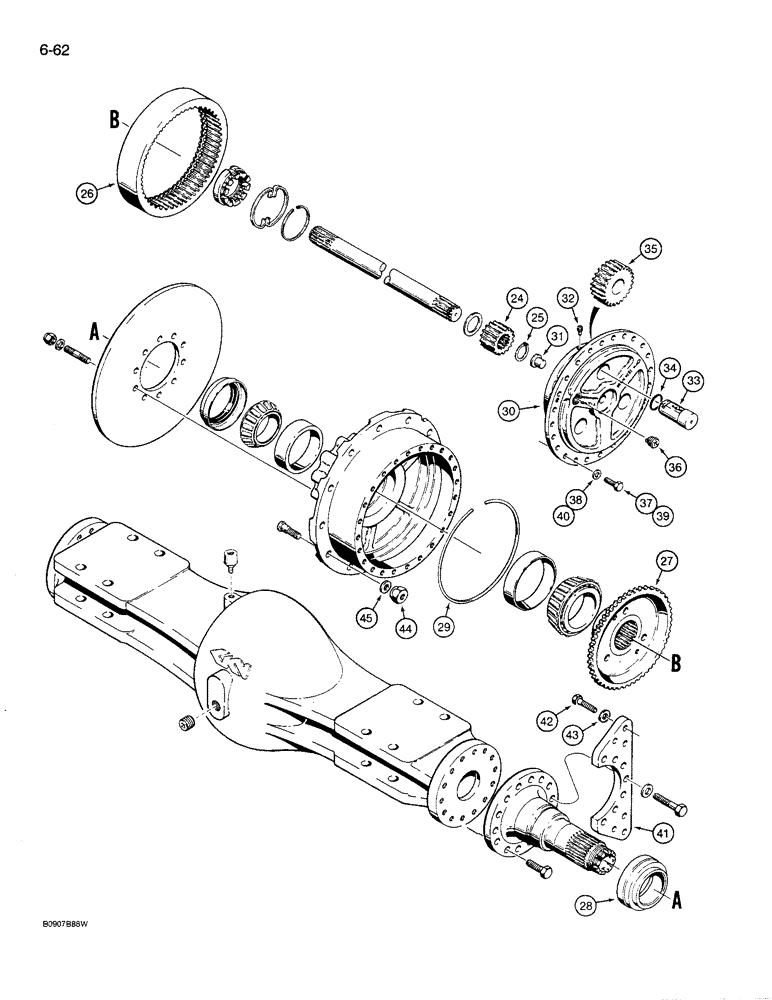

Запчасти Case 621 (6-62) - FRONT AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front, continued from previous page, see page 6-59 for correct axle assembly

1шт.

24

N9839

SUN GEAR

GEAR - sun, planetary

2шт.

25

K12922

RING, SNAP

RING - snap, sun gear

2шт.

26

N9835

SLEWING RING

GEAR - ring, planetary

2шт.

27

N9836

RING, FLYWHEEL

HUB - ring gear

2шт.

28

S300013

SPACER

- hub

2шт.

29

D74456

RING

- retaining, ring gear

2шт.

30

D74451

COVER

- planetary

2шт.

31

D74467

PLUG

- thrust

2шт.

32

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

- set, cover

6шт.

33

D74453

SHAFT

- pinion

6шт.

34

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

35

N9837

GEAR

- pinion, planetary

6шт.

36

D74516

PLUG

- cover

2шт.

37

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

46шт.

38

D74508

WASHER

- flat, 13 mm

46шт.

39

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex, self-locking, 14 - 2 x 35 mm, class 10.9, oil drain

2шт.

40

D74509

WASHER

- flat, 15 mm

2шт.

41

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

42

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

43

L79179

WASHER

- flat

24шт.

44

29-1712

NUT,3/4"-16, G8, Hvy

- heavy hex, 3/4 inch NF(Replaced 25-1712)

48шт.

45

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, special

48шт.
