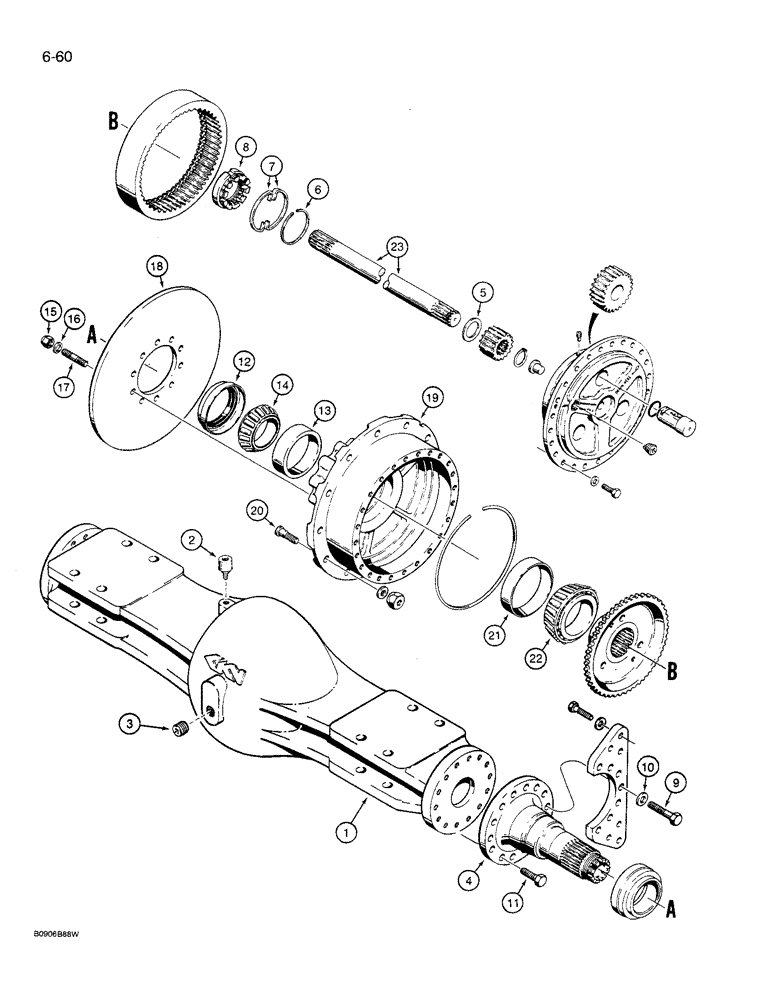

Запчасти Case 621 (6-60) - FRONT AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front, see Figure 6-58 for correct axle assembly, Includes: Ref. 1 - 23

1шт.

1

S300017

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

Ref #2 - This breather has 1/8" - 27 N.P.T.F. Running change has been made to a breather S301626, that has 1/2" B.S.P.T. 04/22/96

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300014

SHAFT

SPINDLE - front axle

2шт.

5

D77572

WASHER

- thrust, spindle

2шт.

6

D77571

VALVE SPRING

RING - spring

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 80 mm, class 10.9

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 55 mm, class 10.9

14шт.

12

S300015

OIL SEAL

SEAL - hub

2шт.

S301453

BEARING ASSY

KIT - bearing, Includes: Ref. 13 & 14

2шт.

13

ST982

BEARING CUP

CUP - bearing

1шт.

14

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

BEARING - tapered roller

1шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

S300016

BRAKE DISC

DISC - brake, L128311 axle, Serial Range: -JAK0022250

2шт.

18

N9832

BRAKE DISC

DISC - brake, L129565 axle, Start Serial: JAK0022250

2шт.

19

N9830

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - special, press in

24шт.

21

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - bearing

2шт.

22

L35045

ROLLER BEARING

BEARING - tapered roller

2шт.

23

D74465

SHAFT

- axle, left-hand front, 1009 mm long

1шт.

23

D74466

SHAFT

- axle, right-hand front, 1067 mm long

1шт.
