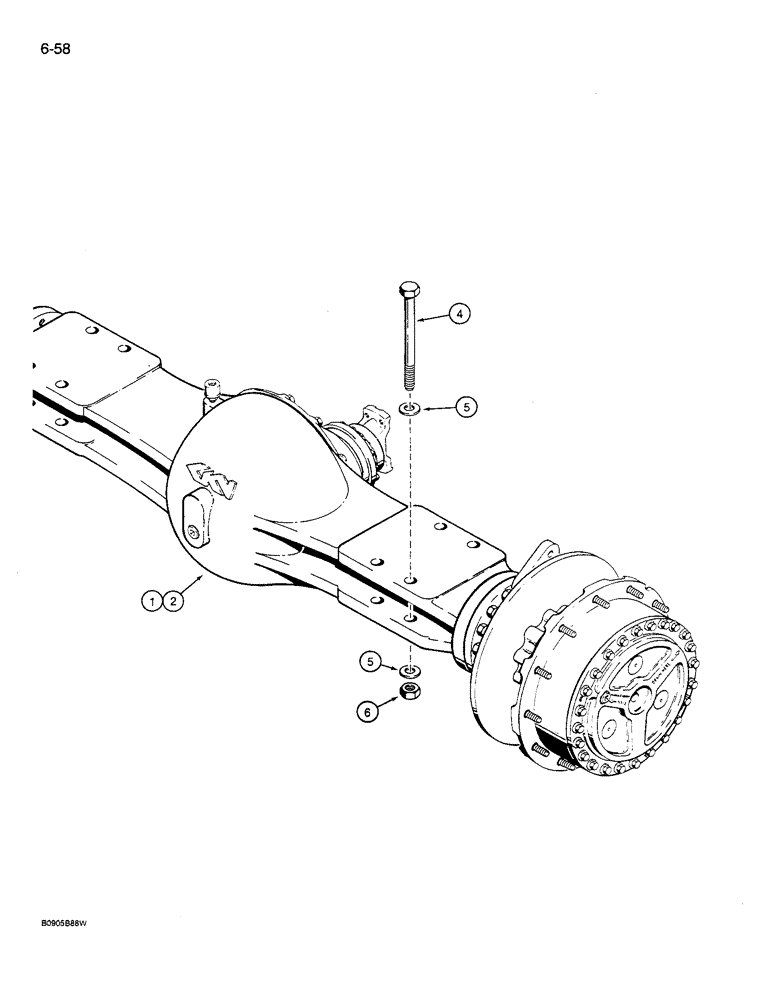

Запчасти Case 621 (6-58) - AXLE ASSEMBLIES AND MOUNTING, PRIOR TO P.I.N. JAK0022250 (06) - POWER TRAIN

1

L128311

AXLE HOUSING

AXLE ASSEMBLY - front, parts list Figures 6-60, 6-62, 6-68, and 6-70, Serial Range: -JAK0022250

1шт.

2

L128312

AXLE HOUSING

AXLE ASSEMBLY - rear, parts list Figures 6-64 through 6-70, Serial Range: -JAK0022250

1шт.

3

L128313

AXLE HOUSING

AXLE ASSEMBLY - rear, with no-spin differential, if used, not shown, parts list Figures 6-64 through 6-70, Serial Range: -JAK0022250

1шт.

4

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex, 1 NF x 10 inch, grade 8, Serial Range: -JAK0022250

16шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened, Serial Range: -JAK0022250

32шт.

6

131-188

LOCK NUT,1"-14, GB

NUT - light hex, self-locking, 1 inch NF, Serial Range: -JAK0022250

16шт.

1

L129565

4WD AXLE ASSY

AXLE ASSEMBLY - front, parts list Figures 6-60, 6-62, 6-68, and 6-70, Start Serial: JAK0022250

1шт.

2

L129566

AXLE HOUSING

AXLE ASSEMBLY - rear, parts list Figures 6-64 through 6-70, Start Serial: JAK0022250

1шт.

3

L129567

AXLE HOUSING

AXLE ASSEMBLY - rear, with no-spin differential, if used, not shown, parts list Figures 6-64 through 6-70, Start Serial: JAK0022250

1шт.

4

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex, 1 NF x 10 inch, grade 8, Start Serial: JAK0022250

16шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened, Start Serial: JAK0022250

32шт.

6

131-188

LOCK NUT,1"-14, GB

NUT - light hex, self-locking, 1 inch NF, Start Serial: JAK0022250

16шт.
