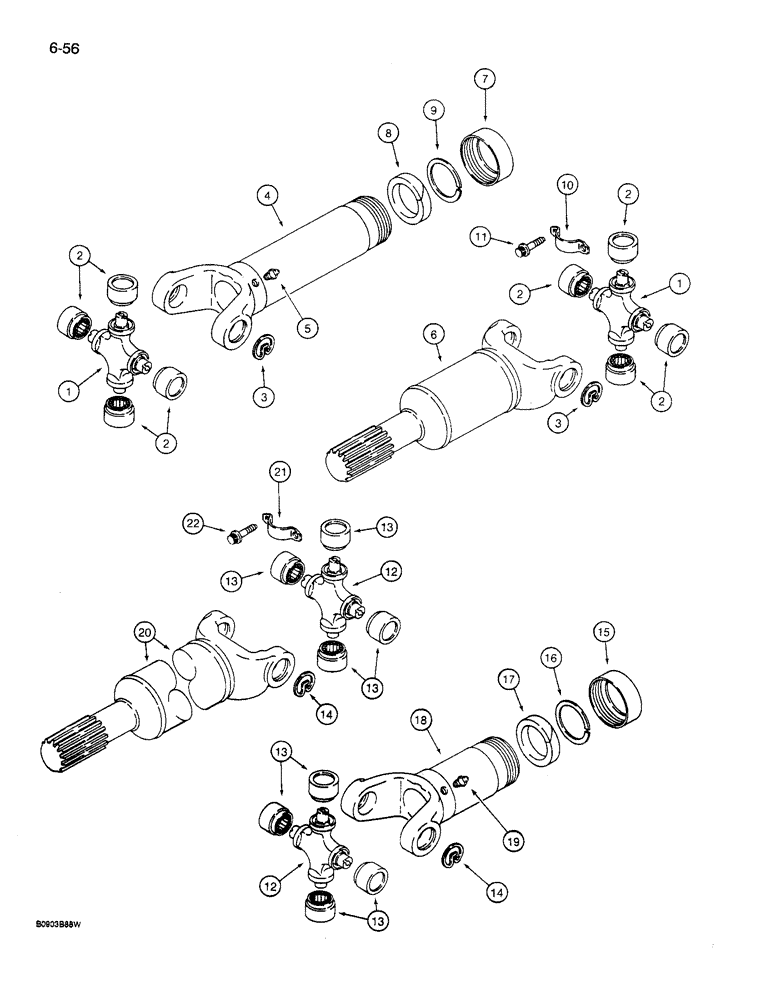

Запчасти Case 621 (6-56) - CENTER AND REAR DRIVE SHAFT, CENTER DRIVE SHAFT (06) - POWER TRAIN

L128212

SHAFT

ASSEMBLY - drive, center

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

KIT - universal joint, journal and bearing, center drive shaft, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, center drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing, center drive shaft

4шт.

3

S92378

RING, SNAP

RING - retaining, universal joint, center drive shaft

4шт.

4

N13547

YOKE

- slip, transmission end, center drive shaft

1шт.

5

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 9/16 inch, center drive shaft

1шт.

6

S301630

SHAFT

YOKE - spline, axle end, center drive shaft

1шт.

7

S85992

CAP COVER

CAP - dust, drive shaft, center

1шт.

8

S85994

WASHER

- cork, center drive shaft

1шт.

9

S88377

WASHER

- steel, center drive shaft

1шт.

10

L116943

SECURING STRAP

STRAP - bearing, center drive shaft

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Center drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

L127277

SHAFT ASSY.

SHAFT ASSEMBLY - drive, rear axle, rear drive shaft

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

KIT - universal joint, journal and bearing, rear drive shaft, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, rear drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

RACE - bearing, rear drive shaft

4шт.

14

S92378

RING, SNAP

RING - retaining, universal joint, rear drive shaft

4шт.

15

S300645

CAP

- yoke end, rear drive shaft

1шт.

16

S300646

WASHER

WASHER - steel, rear drive shaft

1шт.

17

S300647

WASHER

- cork, rear drive shaft

1шт.

18

S300651

HALF SHAFT

YOKE - slip, axle end, rear drive shaft

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, rear drive shaft

1шт.

20

S300643

HALF SHAFT

YOKE - spline, transmission end, rear drive shaft

1шт.

REF 20 S/B S300648 PER PRINT OF L127277. S300648 IS 6.67"LONG FROM END OF SPLINE TO CENTER OF U JOINT HOLE. THE S300643 IS ONLY 5.17".

1шт.

21

L116943

SECURING STRAP

STRAP - bearing, rear drive shaft

4шт.

22

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Rear drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
