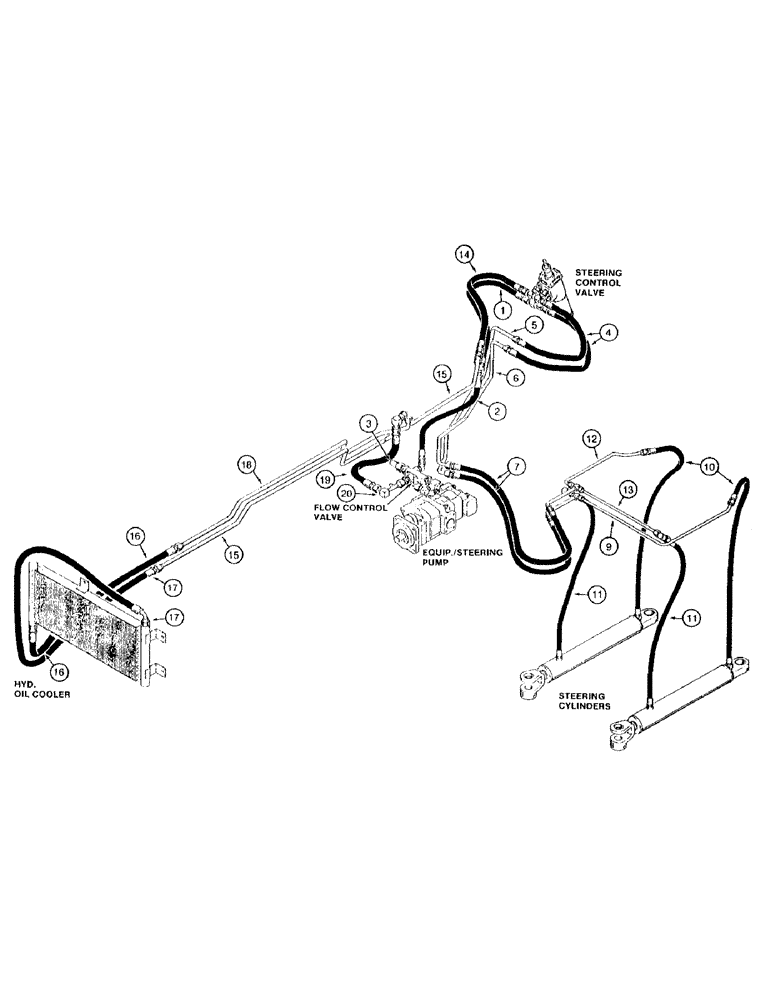

Запчасти Case 621 (1-12) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply hose, steering control valve to hose at flow control valve, Figure 5-06

1шт.

2

Steering supply hose, hose at steering control valve to flow control valve, Figure 5-06

1шт.

3

Tube, flow control valve to pump, Figure 5-06

1шт.

4

Hose, from right-hand upper and lowre ports on control valve to tubes, Figure 5-08

1шт.

5

Left-hand steering tube, from hose at right-hand upper port on control valve to hose, Figure 5-08

1шт.

6

Right-hand steering tube, from hose at right-hand lower port on control valve to hose, Figure 5-08

1шт.

7

Hose, from right and left-hand steering tubes to tubes with tees, Figure 5-08

1шт.

8

Tube with tee, from hoses to tubes leading to steering cylinders, Figure 5-08

1шт.

9

Steering tube, right-hand, from tube with tee to hose at rod rod end of cylinder, Figure 5-08

1шт.

10

Hose, from tubes to closed end of cylinder, Figure 5-08

1шт.

11

Hose, from tubes to rod end of cylinder, Figure 5-08

1шт.

12

Steering tube, left-hand, from tube with tee to closed end of cylinder, Figure 5-08

1шт.

13

Steering tube, right-hand, from tube with tee to closed end of cylinder, Figure 5-08

1шт.

14

Return hose from upper left-hand port on steering control valve to tube at hose to oil cooler, Figure 5-010

1шт.

15

Return tube, from return hose at steering control valve to hose at oil cooler, Figure 5-010

1шт.

16

Return hose, from return tube to oil cooler, Figure 5-010

1шт.

17

Supply hose, from oil cooler to tube to hydraulic reservoir, Figure 5-010

1шт.

18

Supply tube, from supply hose at oil cooler to hydraulic reservoir, Figure 5-010

1шт.

19

Supply hose, from hydraulic reservoir to tube to flow control valve, Figure 5-010

1шт.

20

Supply tube, from supply hose at hydraulic reservoir to flow control valve, Figure 5-010

1шт.
