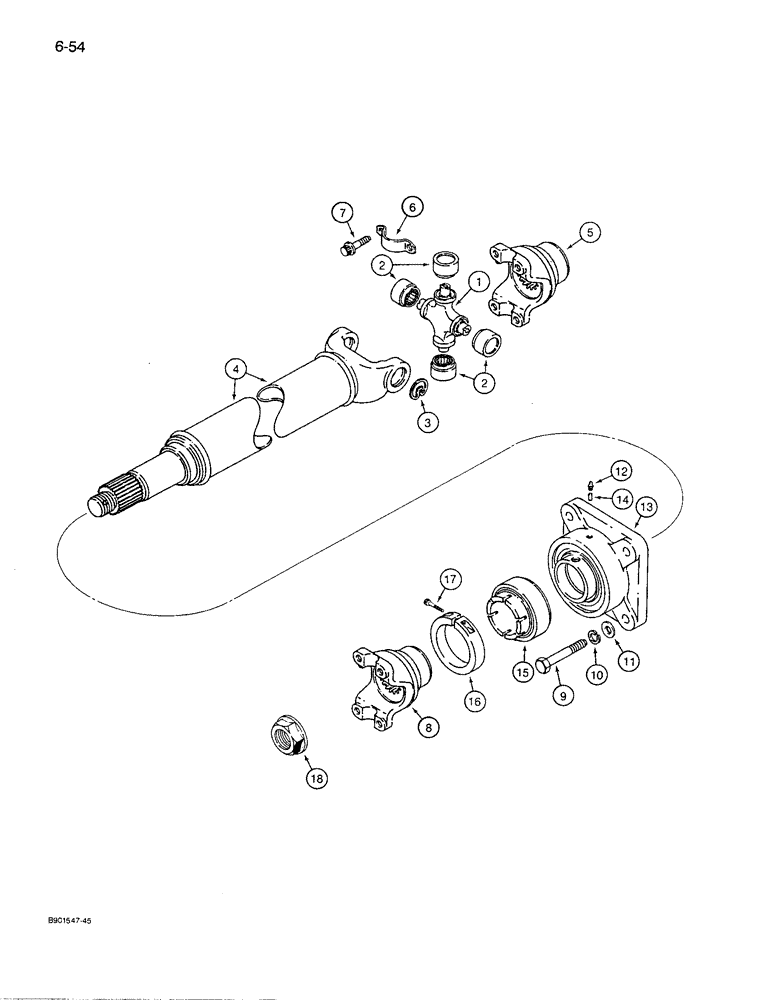

Запчасти Case 621 (6-54) - FRONT DRIVE SHAFT AND SUPPORT BEARING, FRONT DRIVE SHAFT (06) - POWER TRAIN

L128211

SHAFT

ASSEMBLY - drive, front axle, front

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

KIT - universal joint, journal and bearing, front drive shaft, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, front drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing, front frive shaft

4шт.

3

S92378

RING, SNAP

RING - retaining, universal joint, front drive shaft

4шт.

4

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - drive shaft, axle end, front

1шт.

5

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see item 4, Figure 6-68, front

1шт.

6

L116943

SECURING STRAP

STRAP - bearing, front drive shaft

2шт.

7

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Front drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

4шт.

8

L116944

YOKE

- drive shaft to center bearing, bearing straps and bolts are shown on Figure 6-56, items 10 and 11, front

1шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Drive shaft support bearing Hex, 1/2"-13 x 1 3/4", G5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Drive shaft support bearing 1/2"

4шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Drive shaft support bearing

4шт.

L106070

FLANGED BEARING

SUPPORT ASSEMBLY - bearing, front drive shaft, support bearing, Includes: Ref. 12 - 14

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, drive shaft support bearing

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, drive shaft support

1шт.

14

L33788

AXLE PIN

PIN - lock, 1/4 inch diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, drive shaft support, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing, drive shaft support

1шт.

16

L33789

COLLAR

- bearing, drive shaft support

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch, drive shaft support bearing

1шт.

18

L117413

NUT

- hex, flanged, 1 inch NS, drive shaft support bearing

1шт.
