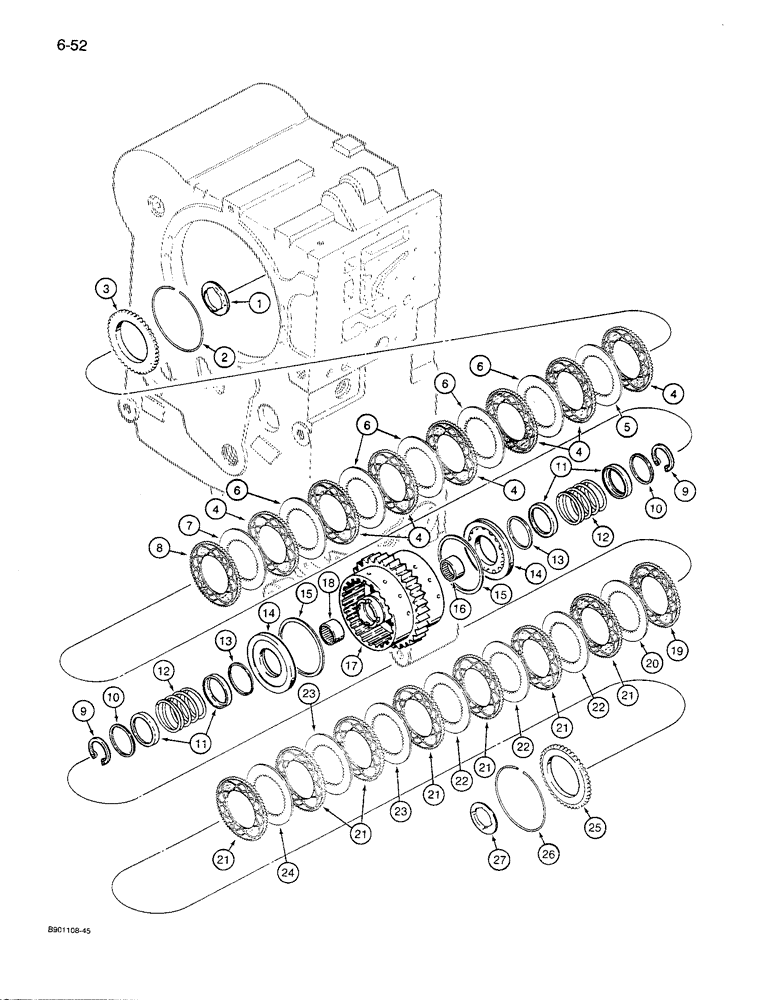

Запчасти Case 621 (6-52) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches, Includes: Ref. 1 - 27

1шт.

1

E135218

THRUST RING

WASHER - thrust

1шт.

2

E135124

RING, SNAP

RING - retaining, disc

1шт.

3

E135222

NOTCHED DISK

PLATE - backing

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - fibre, external teeth

7шт.

5

E135224

NOTCHED DISK

DISC - 1.5 mm thick, steel, internal teeth, if used

1шт.

5

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth, if used

1шт.

5

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth, if used

1шт.

6

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth

5шт.

7

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth

1шт.

8

S301550

NOTCHED DISK

DISC - fibre, external teeth, inner

1шт.

9

E135019

CIRCLIP

RING - snap, spring retaining

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

- clutch

2шт.

13

E135141

SEALING RING

RING - seal, piston ID

2шт.

14

S301540

PISTON

- clutch

2шт.

15

E135142

SEALING RING

RING - seal, piston OD

2шт.

16

E135044

BEARING, NEEDLE

BEARING - needle, 40 mm ID x 47 mm 0D x 20 mm

1шт.

17

S301564

BELL HOUSING

HOUSING - third and fourth clutches

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, 35 mm ID x 42 mm OD x 20 mm

1шт.

19

S301550

NOTCHED DISK

DISC - fibre, external teeth, inner

1шт.

20

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth

1шт.

21

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - fibre, external teeth

7шт.

22

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth

3шт.

23

E135224

NOTCHED DISK

DISC - 1.5 mm thick, steel, internal teeth

2шт.

24

E135224

NOTCHED DISK

DISC - 1.5 mm thick, steel, internal teeth, if used

1шт.

24

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth, if used

1шт.

24

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth, if used

1шт.

25

E135222

NOTCHED DISK

PLATE - backing

1шт.

26

E135124

RING, SNAP

RING - retaining, disc

1шт.

27

E135218

THRUST RING

WASHER - thrust

1шт.
