Запчасти Case 621 (6-48) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK (06) - POWER TRAIN

REF

INSTRUCTION

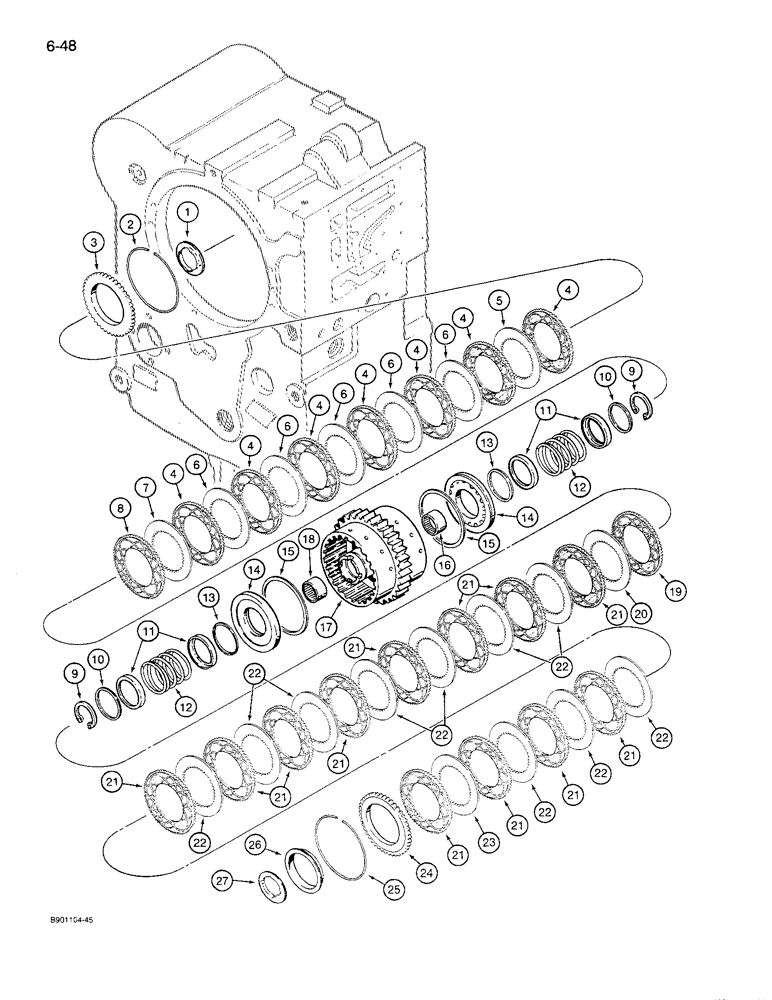

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches, Includes: Ref. 1 -27

1шт.

1

E135227

THRUST RING

PLATE - thrust

1шт.

2

E135124

RING, SNAP

RING - retaining, disc

1шт.

3

E135222

NOTCHED DISK

PLATE - backing

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - fibre, external teeth

7шт.

5

E135224

NOTCHED DISK

DISC - 1.5 mm thick, steel, internal teeth, if used

1шт.

5

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth, if used

1шт.

5

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth, if used

1шт.

6

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth

5шт.

7

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth

1шт.

8

S301550

NOTCHED DISK

DISC - fibre, inner, external teeth

1шт.

9

E135019

CIRCLIP

RING - snap, spring retaining

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

- clutch

2шт.

13

E135141

SEALING RING

RING - seal, piston ID

2шт.

14

S301540

PISTON

- clutch

2шт.

15

E135142

SEALING RING

RING - seal, piston OD

2шт.

16

E135044

BEARING, NEEDLE

BEARING - needle, low clutch

1шт.

17

S301549

BELL HOUSING

HOUSING - forward and low clutch

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, forward clutch

1шт.

19

S301550

NOTCHED DISK

DISC - fibre, inner, external teeth

1шт.

20

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth

1шт.

21

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - fibre, external teeth

12шт.

22

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth

10шт.

23

E135224

NOTCHED DISK

DISC - 1.5 mm thick, steel, internal teeth, if used

1шт.

23

E135226

NOTCHED DISK

DISC - 2.0 mm thick, steel, internal teeth, if used

1шт.

23

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, internal teeth, if used

1шт.

24

E135222

NOTCHED DISK

PLATE - backing

1шт.

25

E135124

RING, SNAP

RING - retaining, disc

1шт.

26

S301535

BACK-UP RING

SPACER - forward gear

1шт.

27

E135218

THRUST RING

WASHER - thrust

1шт.
