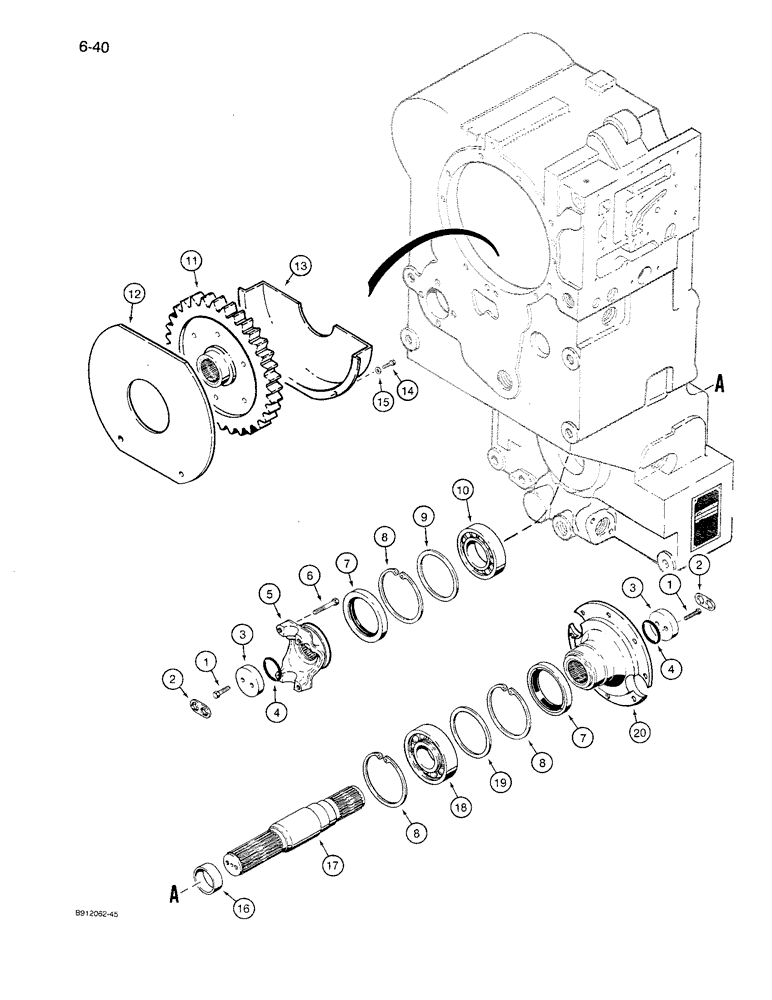

Запчасти Case 621 (6-40) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 20

1шт.

1

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 25 mm, class 10.9

4шт.

2

S301576

LARGE PLATE

PLATE - locking

2шт.

3

S301575

STOP

RETAINER - flange

2шт.

4

S301574

O-RING,4mm Thk x 38mm ID

- output yoke

2шт.

5

103606A1

FLANGE

YOKE - output, rear

1шт.

6

28-826

BOLT,Hex, 1/2" - 20 x 1-5/8", Gr 8

- hex, 1/2 NF x 1-5/8 inch, grade 8

4шт.

7

103607A1

SEAL

- oil, flange

2шт.

8

S301572

CIRCLIP

RING - snap, bearing retaining

3шт.

9

S301571

SHIM,0.1mm Thk

Roller bearing 0.1mm Thk

1шт.

9

S301568

SHIM,0.3mm Thk

Roller bearing 0.3mm Thk

1шт.

9

S301569

SHIM,0.5mm Thk

Roller bearing 0.5mm Thk

1шт.

9

S301570

SHIM,1mm Thk

Roller bearing 1mm Thk

1шт.

10

S301567

BEARING, ROLLER,55 mm ID x 100 mm OD x 21 mm

BEARING - roller, rear output yoke

1шт.

11

103605A1

PINION

GEAR - output

1шт.

12

S301523

LARGE PLATE

PLATE - output gear

1шт.

13

S301522

COVER

- output gear

1шт.

14

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

15

895-10008

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 1.6 mm

2шт.

16

S301613

TUBE,45.1 mm ID x 55 mm OD x 15 mm L

BUSHING - output shaft

1шт.

17

S301565

SHAFT

- output

1шт.

18

S301577

BEARING, BALL,45 mm ID x 100 mm OD x 25 mm

BEARING - ball, front output yoke

1шт.

19

S301582

SHIM,1.5mm Thk

Ball bearing 1.5mm Thk

1шт.

19

S301581

SHIM,1.6mm Thk

Ball bearing 1.6mm Thk

1шт.

19

S301580

SHIM,1.7mm Thk

Ball bearing 1.7mm Thk

1шт.

19

S301579

SHIM,1.8mm Thk

Ball bearing 1.8mm Thk

1шт.

19

S301578

SHIM,1.9mm Thk

Ball bearing 1.9mm Thk

1шт.

20

103608A1

FLANGE

YOKE - output flange, parking brake, front, see Fig. 7-02 for parking brake assembly and mounting parts

1шт.
