Запчасти Case 621 (6-38) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCHES, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

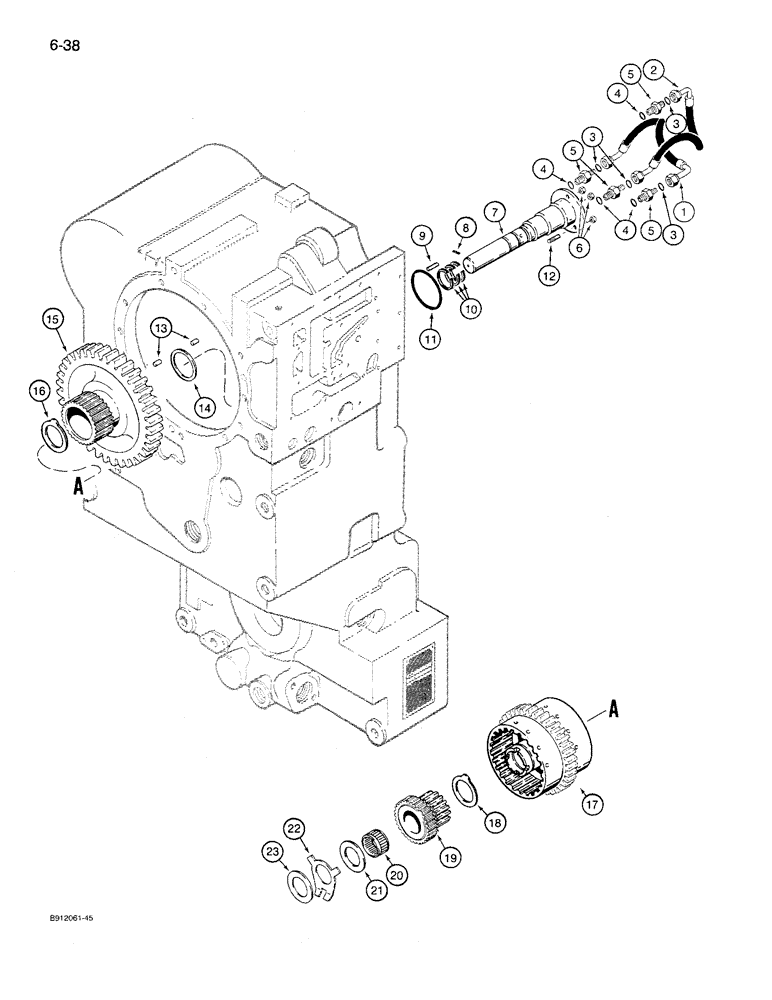

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 23

1шт.

1

103617A1

HYDRAULIC HOSE,425.00 mm

- Third clutch 425.00 mm

1шт.

2

103620A1

HYDRAULIC HOSE,410.00 mm

- Fourth Clutch 410.00 mm

1шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end (Replaces S300586)O-RING - ADAPTER, HOSE SIDE.

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaces S300587)0-RING - ADAPTER, TRANS. SIDE.

4шт.

5

S301961

ADAPTER

- straight

4шт.

6

825-1408

NUT,M8, Cl 8

3шт.

7

103602A1

SHAFT

AXLE ASSEMBLY - third and fourth clutches, Includes: Ref. 8 & 9

1шт.

8

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

2шт.

9

S301552

SLOTTED PIN

PIN - roll, 5 mm OD x 12 mm

2шт.

10

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

11

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

12

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

13

S301561

ROLL

ER - bearing

32шт.

14

S301562

SPACER

- bearing

1шт.

15

103604A1

PINION

GEAR - third

1шт.

16

E135121

WASHER, THRUST

WASHER - thrust, tabbed, third gear

1шт.

17

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth, see Figure 6-52 for components

1шт.

18

E135122

WASHER, THRUST

WASHER - thrust, tabbed, fourth gear

1шт.

19

103603A1

PINION

GEAR - fourth

1шт.

20

E135147

NEEDLE BEARING CAGE,35mm ID x 50.1mm OD x 30.4mm W

BEARING - roller, 35 mm ID x 50 mm OD x 30 mm

1шт.

21

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

22

S301949

WASHER

- thrust, notched

1шт.

23

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

23

E135098

SHIM,0.4mm Thk

(35 mm ID x 70 mm OD) 0.4mm Thk

1шт.

23

E135099

SHIM,0.6mm Thk

(35 mm ID x 70 mm OD) 0.6mm Thk

1шт.

23

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35 mm ID x 70 mm OD) 0.8mm Thk

1шт.

23

E135101

SHIM,1.0mm Thk

(35 mm ID x 70 mm OD) 1.0mm Thk

1шт.

23

E135102

SHIM,1.2mm Thk

(35 mm ID x 70 mm OD) 1.2mm Thk

1шт.

23

E135103

SHIM,1.4mm Thk

(35 mm ID x 70 mm OD) 1.4mm Thk

1шт.

23

E135104

SHIM,1.6mm Thk

(35 mm ID x 70 mm OD) 1.6mm Thk

1шт.

23

E135105

SHIM,1.8mm Thk

(35 mm ID x 70 mm OD) 1.8mm Thk

1шт.

23

E135106

SHIM,2.0mm Thk

(35 mm ID x 70 mm OD) 2.0mm Thk

1шт.

23

E135107

SHIM,2.2mm Thk

(35 mm ID x 70 mm OD) 2.2mm Thk

1шт.

23

E135108

SHIM,2.4mm Thk

(35 mm ID x 70 mm OD) 2.4mm Thk

1шт.

23

E135109

SHIM,2.6mm Thk

(35 mm ID x 70 mm OD) 2.6mm Thk

1шт.

23

E135110

SHIM,2.8mm Thk

(35 mm ID x 70 mm OD) 2.8mm Thk

1шт.
