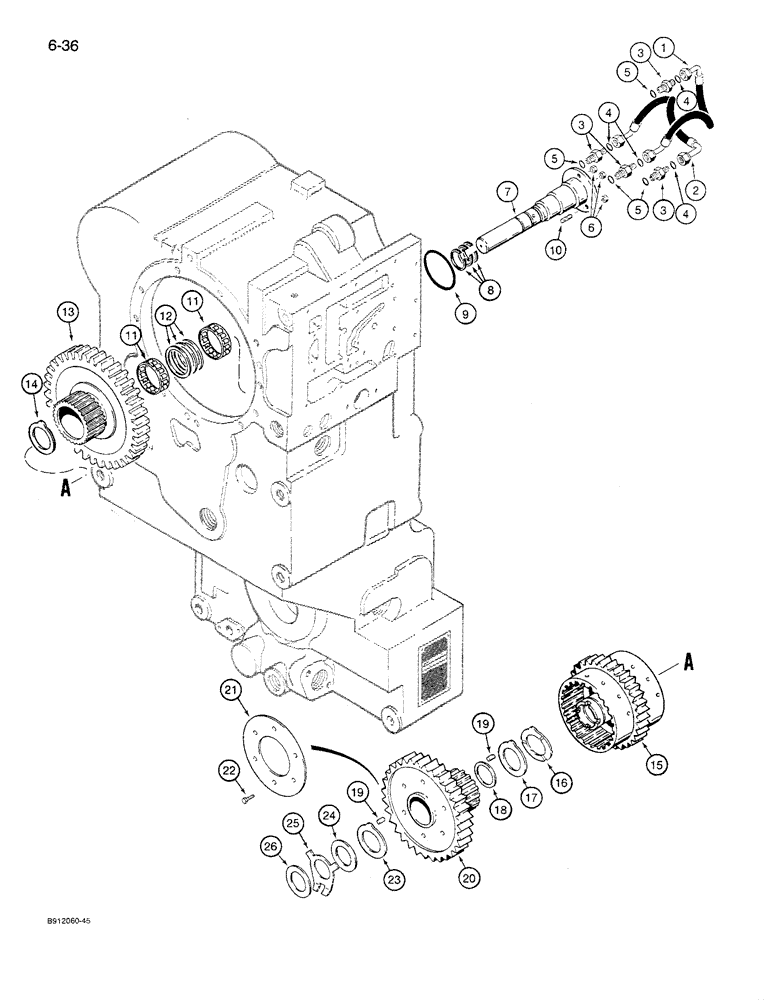

Запчасти Case 621 (6-36) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCHES, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 26

1шт.

1

103619A1

HYDRAULIC HOSE,378.00 mm

- Second clutch 378.00 mm

1шт.

2

103618A1

HYDRAULIC HOSE,225.00 mm

- Reverse clutch 225.00 mm

1шт.

3

S301961

ADAPTER

- straight

4шт.

4

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end (Replaces S300586)O-RING - ADAPTER, HOSE SIDE.

4шт.

5

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaces S300587) 0-RING - ADAPTER, TRANS. SIDE.

4шт.

6

825-1408

NUT,M8, Cl 8

3шт.

7

103599A1

DRIVE SHAFT

AXLE ASSEMBLY - reverse and second clutches

1шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

9

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

10

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

11

S301555

ROLLER CAGE BEARING,45mm ID x 69 OD x 23.8mm

BEARING - roller, set of two

1шт.

12

S301557

RING, SNAP

RING - retaining, internal, bearing

3шт.

13

103601A1

PINION

GEAR - second

1шт.

14

E135121

WASHER, THRUST

WASHER - thrust, tabbed, second gear

1шт.

15

NSS

NOT SOLD SEPARAT

PACK - clutch, reverse and second, see Figure 6-50 for components

1шт.

16

E135122

WASHER, THRUST

WASHER - thrust

1шт.

17

S301531

WASHER

- thrust, tabbed, reverse gear, internal

1шт.

18

S301534

SPACER

WASHER - 48 mm ID x 55 mm OD x 0.8 mm

1шт.

19

S301533

BEARING SET

KIT - roller bearing, set of two

1шт.

20

103600A1

PINION

GEAR - reverse

1шт.

21

103595A1

PROTECTION PLATE

GASKET - gear

1шт.

22

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 x 12 mm, special

6шт.

23

103591A1

THRUST WASHER

- thrust, tabbed, reverse gear, external

1шт.

24

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

25

S301949

WASHER

- thrust, notched

1шт.

26

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

26

E135098

SHIM,0.4mm Thk

(35 mm ID x 70 mm OD) 0.4mm Thk

1шт.

26

E135099

SHIM,0.6mm Thk

(35 mm ID x 70 mm OD) 0.6mm Thk

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35 mm ID x 70 mm OD) 0.8mm Thk

1шт.

26

E135101

SHIM,1.0mm Thk

(35 mm ID x 70 mm OD) 1.0mm Thk

1шт.

26

E135102

SHIM,1.2mm Thk

(35 mm ID x 70 mm OD) 1.2mm Thk

1шт.

26

E135103

SHIM,1.4mm Thk

(35 mm ID x 70 mm OD) 1.4mm Thk

1шт.

26

E135104

SHIM,1.6mm Thk

(35 mm ID x 70 mm OD) 1.6mm Thk

1шт.

26

E135105

SHIM,1.8mm Thk

(35 mm ID x 70 mm OD) 1.8mm Thk

1шт.

26

E135106

SHIM,2.0mm Thk

(35 mm ID x 70 mm OD) 2.0mm Thk

1шт.

26

E135107

SHIM,2.2mm Thk

(35 mm ID x 70 mm OD) 2.2mm Thk

1шт.

26

E135108

SHIM,2.4mm Thk

(35 mm ID x 70 mm OD) 2.4mm Thk

1шт.

26

E135109

SHIM,2.6mm Thk

(35 mm ID x 70 mm OD) 2.6mm Thk

1шт.

26

E135110

SHIM,2.8mm Thk

(35 mm ID x 70 mm OD) 2.8mm Thk

1шт.
