Запчасти Case 621 (6-34) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

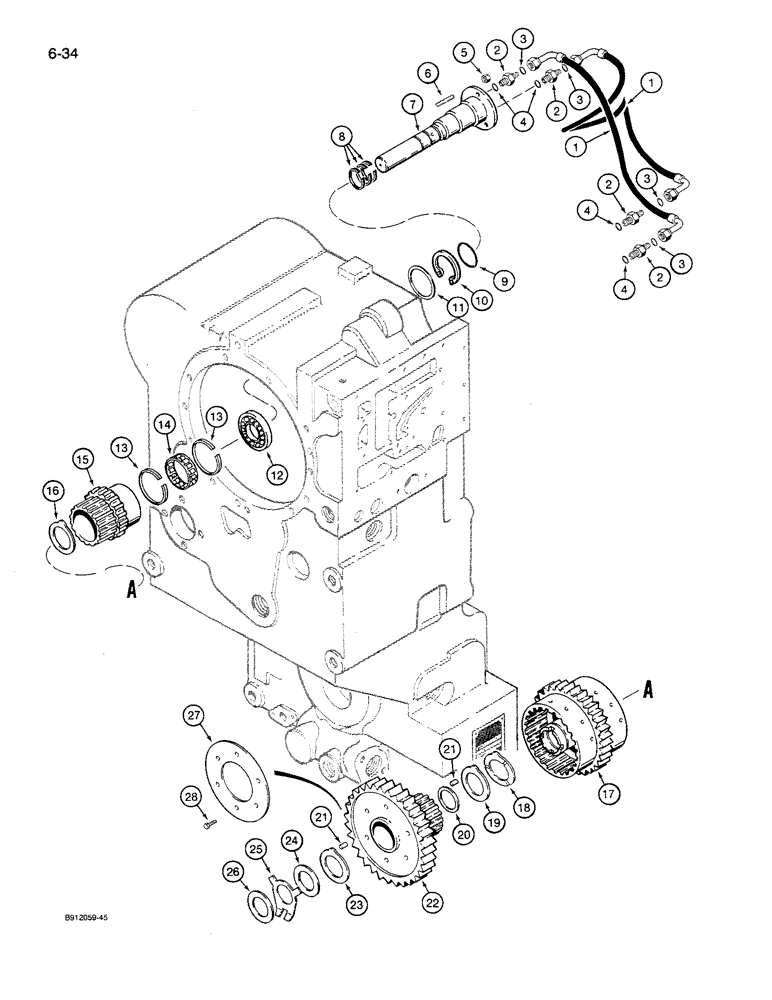

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 28

1шт.

1

103617A1

HYDRAULIC HOSE,425.00 mm

- Forward and low clutch 425.00 mm

2шт.

2

S301961

ADAPTER

- straight

4шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end (Replaces S300586)O-RING - ADAPTER, HOSE SIDE.

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaces S300587) 0-RING - ADAPTER, TRANS. SIDE.

4шт.

5

825-1408

NUT,M8, Cl 8

3шт.

6

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

7

103592A1

AXLE

- forward and low clutches

1шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

9

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

10

K24302

RING, SNAP

RING - snap, internal

1шт.

11

S301544

SHIM,0.3mm Thk

(M60 ID x 75 OD) 0.3mm Thk

1шт.

11

S301545

SHIM,0.5mm Thk

(M60 ID x 75 OD) 0.5mm Thk

1шт.

11

103598A1

SHIM,60mm ID x 75mm OD x 1.2mm Thk

- 60 mm ID x 75 mm OD x 0.9 mm thick

1шт.

11

S301546

SHIM,1mm Thk

(M60 ID x 75 OD) 1mm Thk

1шт.

11

103597A1

SHIM

- 60 mm ID x 75 mm OD x 1.2 mm thick

1шт.

11

S301547

SHIM,1.5mm Thk

(M60 ID x 75 OD) 1.5mm Thk

1шт.

11

S301548

SHIM,1.6mm Thk

(M60 ID x 75 OD) 1.6mm Thk

1шт.

12

L33515

BALL BEARING

BEARING - ball, 45 mm ID x 75 mm OD x 16 mm

1шт.

13

S301542

RING, SNAP

RING - retaining, internal, bearing

2шт.

14

S301541

ROLLER CAGE BEARING,45mm ID x 65mm OD x 28mm

BEARING - roller

1шт.

15

S301543

PINION

GEAR - low

1шт.

16

E135117

WASHER, THRUST

WASHER - thrust, tabbed, low gear

1шт.

17

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see Figure 6-48 for components

1шт.

18

E135122

WASHER, THRUST

WASHER - thrust

1шт.

19

S301531

WASHER

- thrust, tabbed, forward gear, internal

1шт.

20

S301534

SPACER

- roller bearing

1шт.

21

S301533

BEARING SET

KIT - roller bearing, set of two

1шт.

22

103594A1

PINION

GEAR - forward

1шт.

23

103591A1

THRUST WASHER

- thrust, tabbed, forward gear, external

1шт.

24

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

25

S301949

WASHER

- thrust, notched

1шт.

26

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

26

E135098

SHIM,0.4mm Thk

(35 mm ID x 70 mm OD) 0.4mm Thk

1шт.

26

E135099

SHIM,0.6mm Thk

(35 mm ID x 70 mm OD) 0.6mm Thk

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35 mm ID x 70 mm OD) 0.8mm Thk

1шт.

26

E135101

SHIM,1.0mm Thk

(35 mm ID x 70 mm OD) 1.0mm Thk

1шт.

26

E135102

SHIM,1.2mm Thk

(35 mm ID x 70 mm OD) 1.2mm Thk

1шт.

26

E135103

SHIM,1.4mm Thk

(35 mm ID x 70 mm OD) 1.4mm Thk

1шт.

26

E135104

SHIM,1.6mm Thk

(35 mm ID x 70 mm OD) 1.6mm Thk

1шт.

26

E135105

SHIM,1.8mm Thk

(35 mm ID x 70 mm OD) 1.8mm Thk

1шт.

26

E135106

SHIM,2.0mm Thk

(35 mm ID x 70 mm OD) 2.0mm Thk

1шт.

26

E135107

SHIM,2.2mm Thk

(35 mm ID x 70 mm OD) 2.2mm Thk

1шт.

26

E135108

SHIM,2.4mm Thk

(35 mm ID x 70 mm OD) 2.4mm Thk

1шт.

26

E135109

SHIM,2.6mm Thk

(35 mm ID x 70 mm OD) 2.6mm Thk

1шт.

26

E135110

SHIM,2.8mm Thk

(35 mm ID x 70 mm OD) 2.8mm Thk

1шт.

27

103595A1

PROTECTION PLATE

GASKET - gear

1шт.

28

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 x 12 mm, special

6шт.
