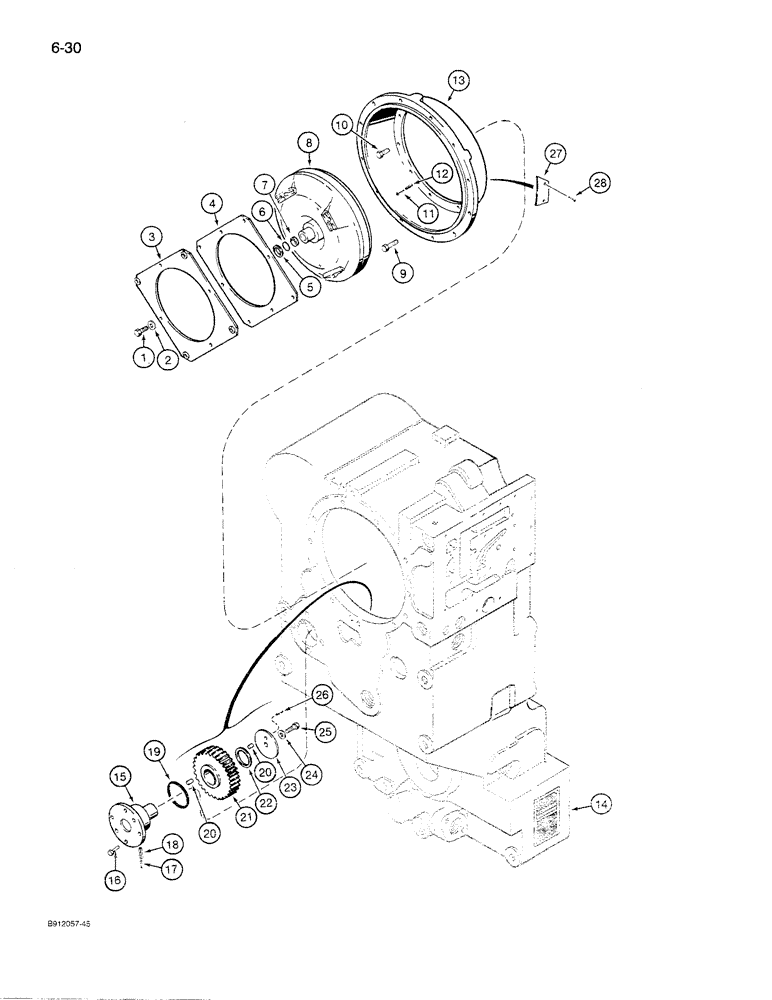

Запчасти Case 621 (6-30) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 28

1шт.

1

111981A1

BOLT

- hex, 10 - 1.5 x 20 mm, class 10.9 (Replaces 626-10020)

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

3

S301486

DIAPHRAGM

PLATE - flex, converter, stepped

1шт.

S301486 plate has (4) round pads 11/2/98 DB

1шт.

4

S301485

DIAPHRAGM

PLATE - flex, converter, plain

1шт.

S301485 Plate has (4) triangular shaped pads

1шт.

5

S301489

RING, SNAP

RING - retaining, converter

1шт.

6

S301488

O-RING,3mm Thk x 18mm ID

- 25 mm ID x 3 mm, converter

1шт.

7

S301487

WASHER

- sealing, converter

1шт.

8

102999A1

CONVERTER

- transmission

1шт.

8

102999A1R

REMAN-TORQUE CONVERT

621, (S/N JAK0021701 & AFTER), P.I.N. JAK0021701 AND AFTER

1шт.

8

102999A1C

CORE-TORQUE CONVERTR

Return Number

1шт.

9

962-10030

HEX SOC SCREW,M10 x 30mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 30 mm, class 10.9

3шт.

10

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

11

E135027

PIN, SPLIT (COTTER)

PIN - roll, 10 mm OD x 28 mm

2шт.

12

E135025

PIN

- roll, 6 mm OD x 28 mm

2шт.

13

S301484

BELL HOUSING

HOUSING - converter

1шт.

14

103609A1

HOUSING

- transmission

1шт.

15

S301527

SHAFT

AXLE - stub, idler gear

1шт.

16

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

17

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

1шт.

18

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

- stub axle

1шт.

20

S301528

ROLLER BEARING,35 mm ID x 55 mm OD x 28 mm

KIT - needle bearing, set of two

1шт.

21

S301529

PINION

GEAR - idler

1шт.

22

E135003

PISTON RING

RING - idler gear

1шт.

23

S300456

BEARING WASHER

COVER - bearing

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

25

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

1шт.

26

E135024

DOWEL

PIN - roll, 4 mm OD x 10 mm

1шт.

27

S301490

LARGE PLATE

PLATE - converter

1шт.

28

S301491

STUD

- grooved

2шт.
