Запчасти Case 621 (6-28) - TRANSMISSION ASSEMBLY, HOUSING, P.I.N. JAK0027512 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

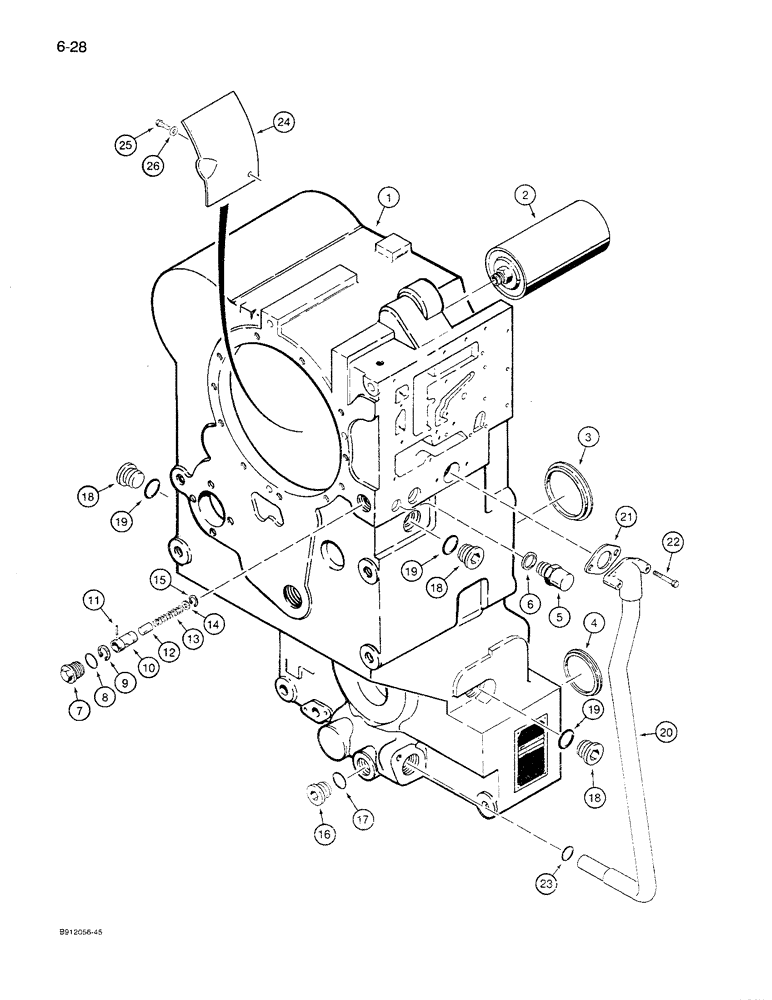

TRANSMISSSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 26

1шт.

1

103609A1

HOUSING

- transmission

1шт.

2

S301612

FILTER

- transmission oil

1шт.

3

E135201

SEAL

- 106 mm, expansion

1шт.

4

E135169

PLUG

- 80 mm, expansion

2шт.

5

E135079

PLUG

- hex, special

1шт.

6

1968430C1

O-RING

- plug

1шт.

7

E135082

PLUG

- hex, special

1шт.

8

A52368

SEAL

O-RING - plug

1шт.

9

933917R1

SNAP RING,M28, Int

RING - snap, internal, special

1шт.

10

E135200

SPACER

SLEEVE - valve, converter pressure

1шт.

11

E135126

DOWEL,4mm OD x 27.5mm L

PIN - dowel, special

1шт.

12

E135166

VALVE POPPET

PISTON - converter pressure valve

1шт.

13

E135134

SPRING

- converter pressure valve

1шт.

14

E135092

WASHER

- spring stop, special

1шт.

15

E135020

CIRCLIP

RING - snap, internal, 20 x 1.5 mm

1шт.

16

E135080

PLUG

- hex socket, 22 x 1.5 mm

1шт.

17

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

O-RING - plug

1шт.

18

934651R1

PLUG,Hex Soc, M18 x 1.5

Special Hex Soc, M18 x 1.5

3шт.

19

S300495

O-RING,2mm Thk x 15mm ID

- plug

3шт.

20

S301614

PIPE

TUBE - suction

1шт.

REF 20 - REPLACED WITH 130347A1 (1), S300507 (2), AND 130346A1 (2). SEE BULLETIN NWL SL 012 93 FOR INSTRUCTIONS. ALSO NOTED IN 621B CAT. NAPO TECH 8/17/99

1шт.

21

S300507

GASKET

- suction tube

1шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

23

S302040

O-RING,3.5mm Thk x 26.6mm ID

- suction tube to transmission

1шт.

24

S301526

PROTECTION PLATE

GUARD - splash, internal housing

1шт.

25

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

3шт.

26

895-10008

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 1.6 mm

3шт.

SPEED SENOR IS S300494.

1шт.
