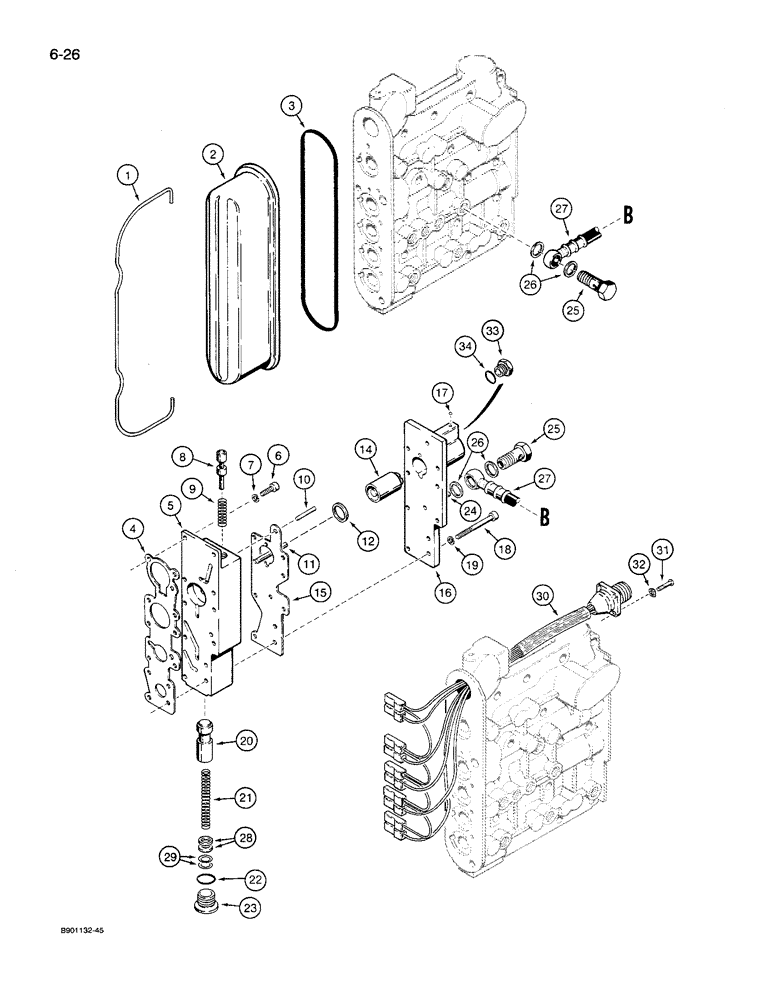

Запчасти Case 621 (6-26) - TRANSMISSION ASSEMBLY, CONTROL VALVE, P.I.N. JAK0021701 THRU JAK0027511 (06) - POWER TRAIN

L127731

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 and 3 on Figure 6-02, items 12 through 16 on Figure 6-04, item 4 on Figure 6-06, and all items on Figures 6-08 through 6-32 and Figure 7-02

1шт.

LR127731

REMAN-TRANSMISSION

Remanufactured Transmission; 621, Between JAK0021701 & JAK0027511, Model Number 4WG150, Stock Number 4642 054 014

1шт.

LC127731

CORE-TRANSMISSION

Return Part Number

1шт.

S300492

VALVE

VALVE ASSEMBLY - transmission control, includes items 24 through 28 on Figure 6-28 and all items on Figure 6-30, Includes: Ref. 1 - 34

1шт.

1

E135183

CLAMP

CLAMP - wire, solenoid cover

1шт.

2

E135190

PROTECTIVE COVER

COVER - solenoid

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover

1шт.

4

S301595

GASKET

GASKET - section, intermediate valve

1шт.

5

S300556

LARGE PLATE

PLATE, LARGE SECTION - valve, intermediate

1шт.

6

S300557

SCREW

BOLT - hex socket, special

2шт.

7

892-1005

LOCK WASHER

WASHER - lock, 5 mm

2шт.

8

E135000

VALVE POPPET

SPOOL - relief

1шт.

9

E135139

SPRING

SPRING - relief spool

1шт.

10

S300558

DOWEL

PIN - dowel, 4 OD x 25 mm

1шт.

11

S301603

NEEDLE

ROLLER - needle

1шт.

12

S301604

SHIM

SHIM - 2.0 mm thick, if used

1шт.

12

S301605

SHIM

SHIM - 3.0 mm thick, if used

1шт.

12

S301606

SHIM

SHIM - 4.0 mm thick, if used

1шт.

12

S301607

SHIM

SHIM - 6.0 mm thick, if used

1шт.

12

S301608

SHIM

SHIM - 8.0 mm thick, if used

1шт.

14

S301600

RACE

PISTON - valve

1шт.

15

S301598

GASKET

GASKET - cover

1шт.

16

S301599

COVER

COVER - valve

1шт.

17

S300561

BALL

BALL - cover

1шт.

18

E135073

BOLT

BOLT - hex socket, special

9шт.

19

892-1005

LOCK WASHER

WASHER - lock, 5 mm

9шт.

20

S300573

PISTON

SPOOL - valve, intermediate

1шт.

21

N14721

SPRING

SPRING - intermediate valve spool

1шт.

22

S300495

O-RING,2mm Thk x 15mm ID

O-RING - plug

1шт.

23

934164R1

PLUG,Hex Soc, M18 x 1.5

PLUG - hex socket, 18 mm - 1.5

1шт.

24

E135212

DIAPHRAGM

ORIFICE - hex socket headless

1шт.

25

S301609

BANJO BOLT

CONNECTOR - hydraulic, hex head

2шт.

26

A52231

SEALING RING

RING - seal, connector

4шт.

27

S300572

HOSE

HOSE - valve

1шт.

28

S301610

WASHER

WASHER - flat, special

2шт.

29

S301611

SHIM,0.5mm Thk

SHIM, , Intermediate valve spool 0.5mm Thk

2шт.

30

S301597

HARNESS

HARNESS - transmission control valve

1шт.

31

E135287

SCREW,Pan Slotted, M14 x 12mm

SCREW - cap, special

4шт.

32

E135286

WASHER

WASHER - wave

4шт.

33

S301601

PLUG

PLUG - hex, special, if used

1шт.

34

S301602

O-RING,2mm Thk x 17mm ID

O-RING - plug, if used

1шт.
