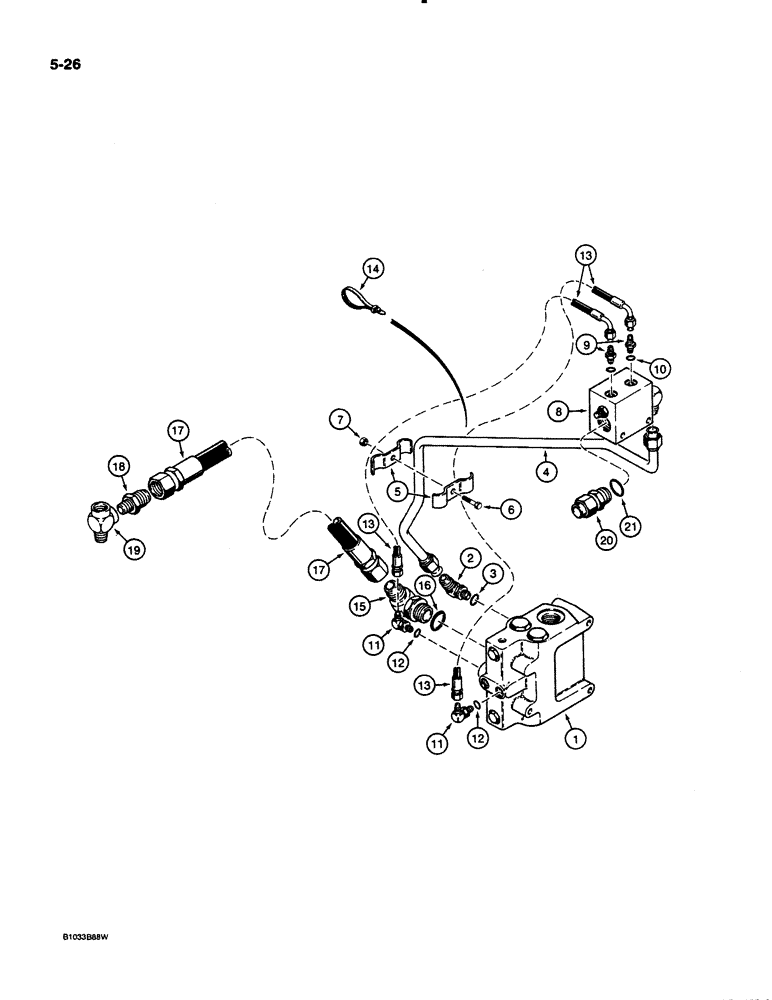

Запчасти Case 621 (5-26) - AUX. STEERING HYDRAULIC CIRCUIT, CHECK VALVE TO AUX. STEERING VALVE, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

1

L123919

VALVE

ASSEMBLY - auxiliary steering, parts list Figure 5-34

1шт.

2

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, auxiliary valve to tube

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

4

L126337

TUBE,19.04 mm OD

- auxiliary valve to check valve

1шт.

5

L124257

CLAMP

- tube, if used

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, if used

1шт.

7

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, , If used 3/8"-16, GB

1шт.

8

L114148

CHECK VALVE

VALVE ASSEMBLY - check, auxiliary steering, parts list Figure 5-38

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, hoses at auxiliary valve

2шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

13

L124737

HOSE ASSY.

HOSE - 48" (1219 mm) long, auxiliary valve to check valve

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, adjustable, hose to drain valve

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

17

L124323

HOSE ASSY.

HOSE - 32-1/2" (825 mm) long, auxiliary valve to drain valve

1шт.

18

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, hose to tee at drain valve

1шт.

19

217-1065

TEE,3/4" - 14 Female x 3/4" - 14 Male Run

- 3/4" NPT, at drain valve

1шт.

20

L126332

TUBE,25.4 mm OD x 65.09 mm L

- special, at auxiliary steering check valve

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.
