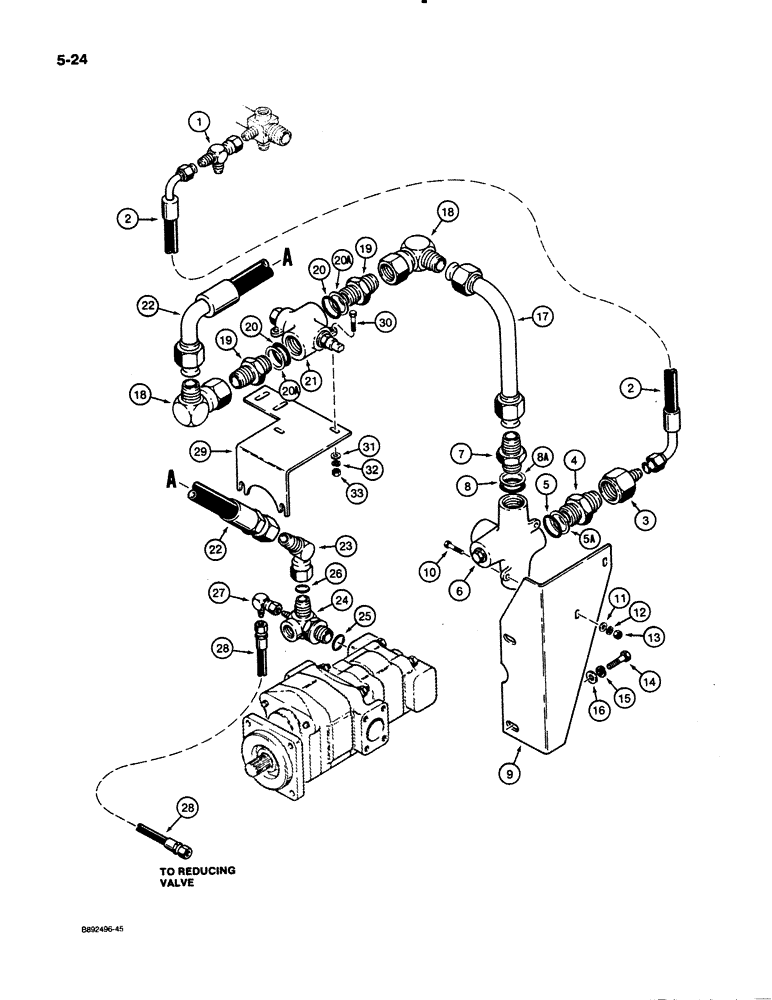

Запчасти Case 621 (5-24) - AUXILIARY STEERING HYDRAULIC CIRCUIT, OIL FILTER TO STEERING PUMP, P.I.N. JAK0020901 AND AFTER (05) - STEERING

1

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 flare branch x flare x adj fem

1шт.

2

L127369

HOSE

- 1050 mm long, oil filter to steering pump

1шт.

3

218-1704

REDUCER,37 Degree, 1 7/8"-12, Fem x 1 1/16"-12 Male

- 1-7/8-12 straight thread x 1-1/16-12 inch flare

1шт.

4

L125574

FITTING

ADAPTER - 1-7/8-12 inch flare x 48 mm str thread

1шт.

5

391219R1

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

- adapter

1шт.

5a

S301046

OIL SEAL

RING - backup, o-ring

1шт.

6

L125515

SELECTOR

VALVE ASSEMBLY - auxiliary steering, stand by, parts list Figure 5-36

1шт.

7

L125575

FITTING

ADAPTER - 1-5/8-12 inch flare x 42 mm str thread

1шт.

8

S6492

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

- adapter

1шт.

8a

S301047

BACK-UP RING,1.728" ID x 1.961" OD x 0.8"

RING - backup, o-ring

1шт.

9

L125620

SUPPORT

BRACKET - mounting, stand by valve

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

- hex, 20 mm - 2.5 x 45 mm

2шт.

15

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.

16

895-11020

WASHER,M20 x 37 x 3

- flat, 22 mm x 37 mm x 3 mm

2шт.

17

L127304

PIPE,31.75 mm OD x 320, 146 mm L

TUBE - stand by valve to check valve

1шт.

18

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree swivel, 1-5/8-12 inch flare x swivel

2шт.

19

L125575

FITTING

ADAPTER - 1-5/8-12 inch flare x 42 mm str thread

2шт.

20

S6492

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

- adapter

1шт.

20a

S301047

BACK-UP RING,1.728" ID x 1.961" OD x 0.8"

RING - backup, o-ring

1шт.

21

L126569

VALVE

ASSEMBLY - check, parts list page 5-41

1шт.

22

L127389

HOSE

- 530 mm long, check valve to steering pump

1шт.

23

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel, 1-5/16-12 inch flare x swivel

1шт.

24

L126272

MANIFOLD

- steering pump

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, boss end

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End -021, 90 Duro, .926" ID x .070" Thk

1шт.

27

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 7/16-20 flare x swivel

1шт.

28

L127537

HOSE ASSY.

HOSE - 470 mm long, steering pump to pressure reducing valve

1шт.

29

L127383

SUPPORT

BRACKET - mounting, flow indicator valve

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.
