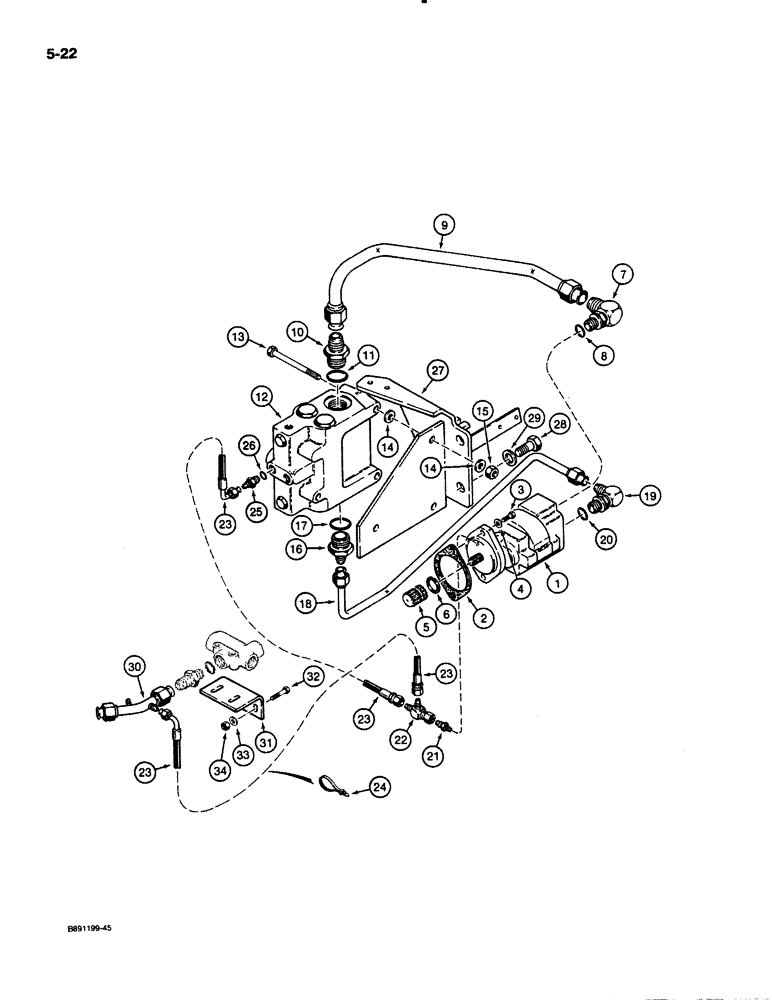

Запчасти Case 621 (5-22) - AUX. STEERING HYDRAULIC CIRCUIT, AUX. PUMP TO AUX. STEERING VALVE, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

1

L123918

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, auxiliary, parts list Figure 5-30

1шт.

2

A58617

GASKET

- pump, auxiliary steering

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

4

495-21044

WASHER,3/8"

2шт.

D78317

GEAR WHEEL

GEAR ASSEMBLY - drive

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

A18024

RING, SNAP

RING - retaining

1шт.

7

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Upper tube from pump to valve 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

9

L118970

TUBE ASSY.,25.4 mm OD

TUBE - upper, auxiliary pump to auxiliary valve

1шт.

10

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, upper tube to auxiliary valve

1шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

12

L123919

VALVE

ASSEMBLY - steering, auxiliary, parts list Figure 5-34

1шт.

13

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex head, 1/2" - 13 NC x 5", zinc plated

3шт.

14

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

6шт.

15

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

3шт.

16

L124292

ROD, CONNECTING

ADAPTER - special, lower, Serial Range: tube-valve

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

18

L118972

TUBE ASSY.,15.87 mm OD

TUBE - lower, auxiliary pump to auxiliary valve

1шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, lower tube from pump to valve

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

21

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male, auxiliary pump to tee at hose to auxiliary valve

1шт.

22

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- swivel, auxiliary pump to adapter at hose

1шт.

23

D136993

HOSE ASSY.

HOSE - 33-1/4" (850 mm) long, pump to valve and return tube

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, hose to auxiliary steering valve

1шт.

27

L126853

BRACKET

- mounting, auxiliary steering valve

1шт.

28

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

29

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

2шт.

30

L118967

TUBE ASSY.,19.04 mm OD x 158, 43 mm L

TUBE - supply, hose to flow control valve

1шт.

31

L126347

BRACKET

- mounting, flow control valve

1шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

34

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.
