(5-18) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, P.I.N. JAK0020901 THRU JAK0021336

Запчасти Case 621 (5-18) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, P.I.N. JAK0020901 THRU JAK0021336 (05) - STEERING

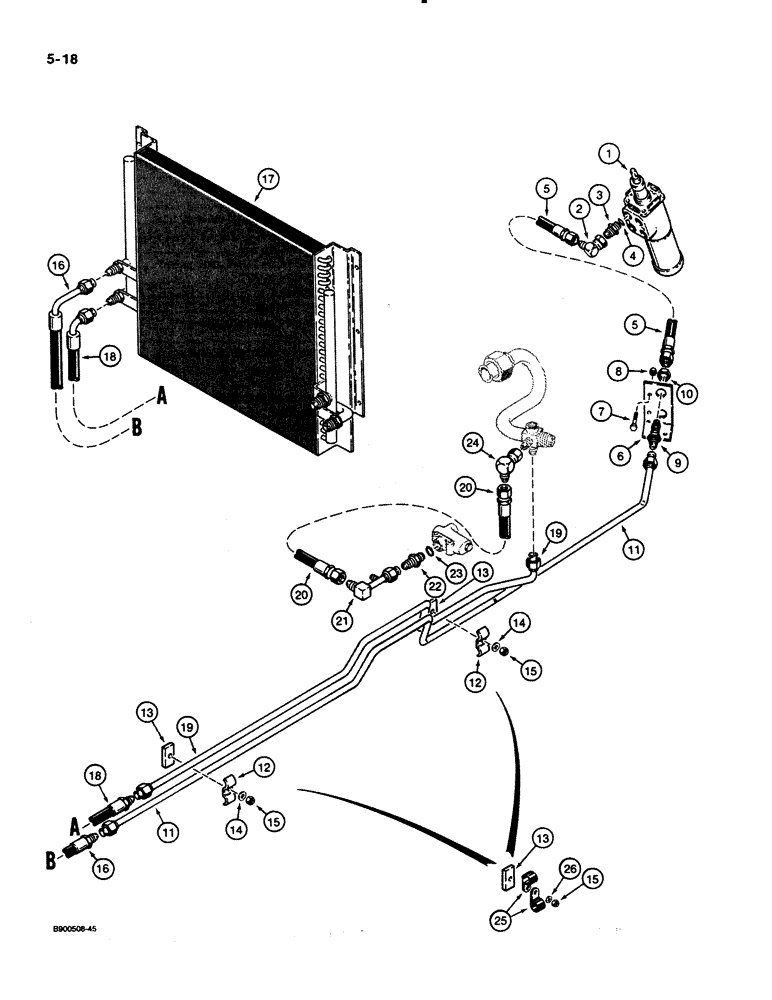

Схема запчастей Case 621 - (5-18) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, P.I.N. JAK0020901 THRU JAK0021336 (05) - STEERING
20
18
25
21
2
10
11
19
19
15
26
13
5
6
20
1
24
13
22
5
9
12
11
16
18
15
8
23
12
14
4
7
15
13
14
3
17
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L123997

VALVE

ASSEMBLY - control, steering, parts list Figure 5-4

1шт.

2

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 5/8 x 1/2 straight inch thread

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

L124237

HOSE

- 600 mm long, return, at control valve

1шт.

6

L119131

SUPPORT

BRACKET - mounting, hose

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

11

L127433

TUBE,19.04 mm OD

- return, hose at steering control valve to hose at oil cooler

1шт.

12

L72801

HOSE CLAMP

CLAMP - hydraulic oil tubes to rear frame, if used

4шт.

13

L119350

SPACER

- clamp

2шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

16

L127447

HOSE ASSY.

HOSE - 1100 mm, return, at oil cooler

1шт.

17

A184382

COOLER ASSY.

COOLER - oil, transmission and hydraulic

1шт.

18

L124268

HOSE ASSY.

HOSE - 1050 mm long, supply, at oil cooler

1шт.

19

L127431

TUBE,19.04 mm OD

- hose at oil cooler to tube to filter

1шт.

20

L127370

HOSE

- 550 mm long, filter tube to tube at flow control valve

1шт.

21

L127310

PIPE,19.04 mm OD x 80 mm L

TUBE - supply, at flow control valve

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

25

T50103

CLAMP

- tubes, if used

4шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
