(5-16) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, PRIOR TO P.I.N. JAK0020901

Запчасти Case 621 (5-16) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

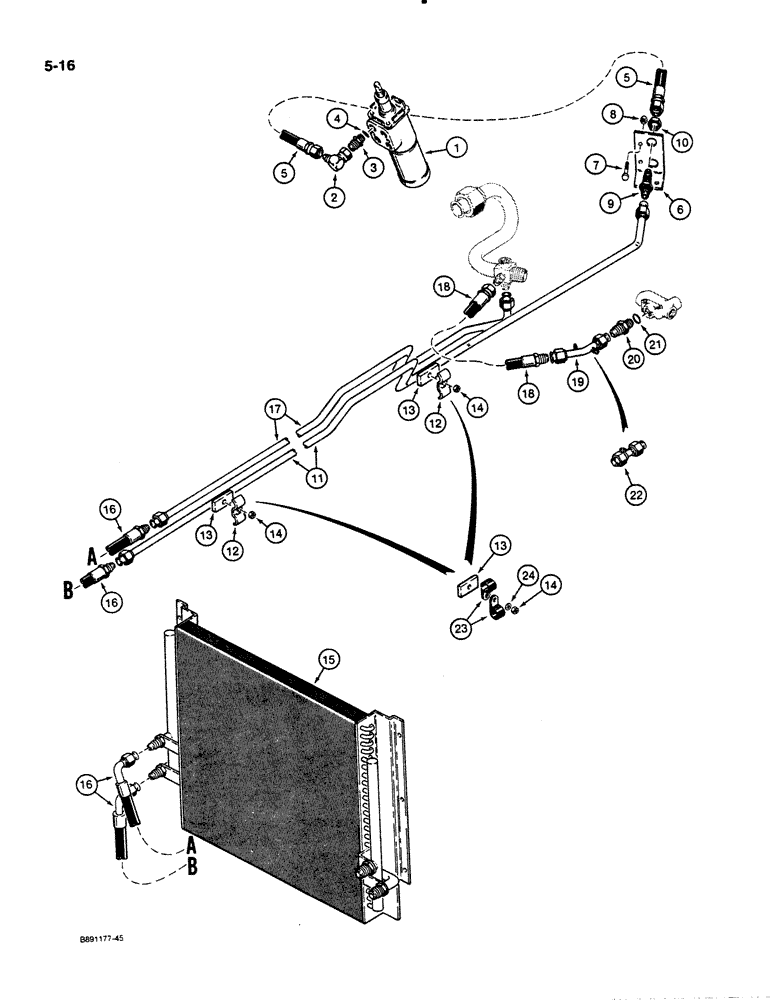

Схема запчастей Case 621 - (5-16) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, PRIOR TO P.I.N. JAK0020901 (05) - STEERING
18
5
8
6
17
24
20
13
14
21
16
2
15
10
12
11
13
5
18
19
14
14
22
7
14
4
1
3
9
23
12
13
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L123997

VALVE

ASSEMBLY - control, steering, parts list Figure 5-4

1шт.

2

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

5

L124237

HOSE

- 23-5/8" (600 mm) long, control valve to tube to oil cooler

1шт.

6

L119131

SUPPORT

BRACKET - mounting, hose

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

11

L127433

TUBE,19.04 mm OD

- return, hose at steering control valve to hose at oil cooler

1шт.

12

L72801

HOSE CLAMP

CLAMP - hydraulic oil tubes to rear frame, if used

2шт.

13

L119350

SPACER

- clamp

2шт.

14

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

15

A184804

COOLER

- oil, transmission and hydraulic

1шт.

16

L124268

HOSE ASSY.

HOSE - 41-3/8" (1050 mm) long, at oil cooler

2шт.

17

L127431

TUBE,19.04 mm OD

- hose at oil cooler to tube to filter

1шт.

18

L124233

HOSE ASSY.

HOSE - 21-3/4" (550 mm) long, filter tube to tube at flow control valve

1шт.

19

L118967

TUBE ASSY.,19.04 mm OD x 158, 43 mm L

TUBE - supply, at flow control valve, if used

1шт.

20

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, tube to flow control valve

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

22

L127273

TUBE,19.04 mm OD x 80, 18 mm L

- supply, at flow control valve, if used

1шт.

23

T50103

CLAMP

- tubes

4шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
