Запчасти Case 621 (5-14) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS, P.I.N. JAK0020901 AND AFTER (05) - STEERING

1

L123997

VALVE

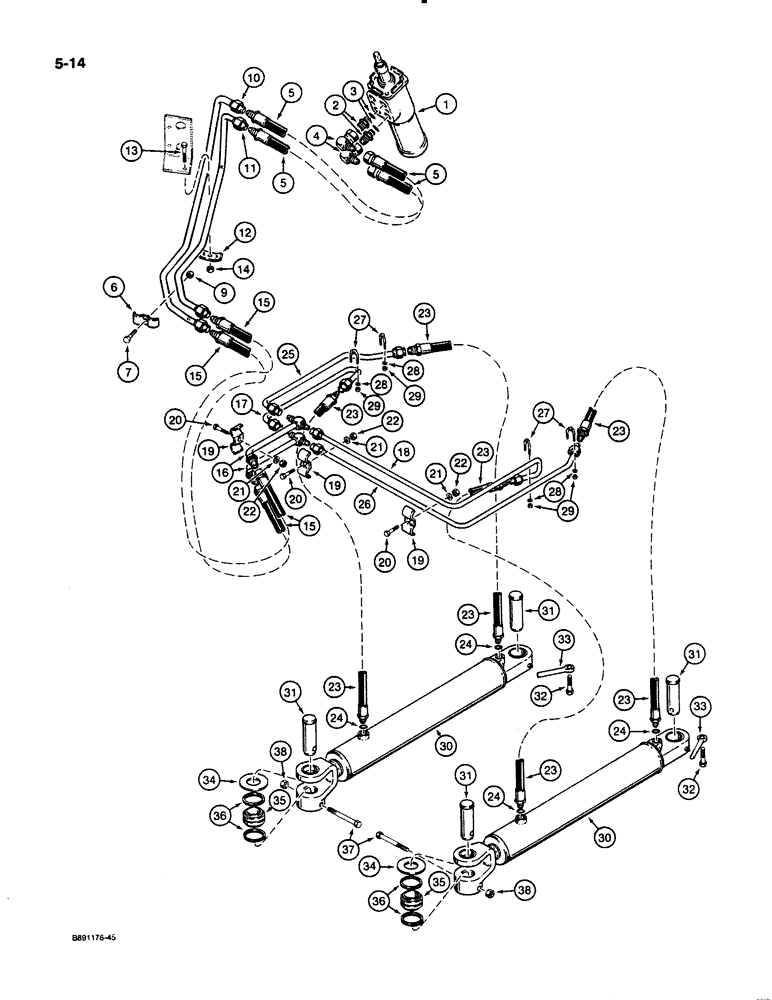

ASSEMBLY - control, steering, parts list Figure 5-4

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

5

L124234

HOSE

- 25-5/8" (650 mm) long, control, Serial Range: valve-tube

2шт.

6

S45067

CLAMP

- tube

1шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, zinc plated

1шт.

9

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

10

L127350

PIPE,15.87 mm OD

TUBE - steering, left-hand, from hose at control valve

1шт.

11

L127348

PIPE,15.87 mm OD x 491, 299 mm L

TUBE - steering, right-hand, from hose at control valve

1шт.

12

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, zinc plated

1шт.

14

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

15

L124234

HOSE

- 25-5/8" (650 mm) long, Serial Range: tube-tube

2шт.

16

L118907

PIPE ASSY.,15.87 mm OD

TUBE - steering, with tee

2шт.

17

L118918

PIPE,12.7 mm OD x 610, 78 mm L

TUBE - steering, lower left-hand, to rod end of cylinder

1шт.

18

L118922

PIPE

TUBE - steering, upper right-hand, to rod end of cylinder

1шт.

19

R15257

CLAMP

- tube

3шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

3шт.

21

495-21044

WASHER,3/8"

3шт.

22

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

23

L124236

HOSE

- 27-5/8" (700 mm) long, Serial Range: tube-cylinder

4шт.

25

L118924

PIPE,12.7 mm OD

TUBE - steering, upper left-hand, to closed end of cylinder

1шт.

26

L118916

PIPE,12.7 mm OD x 552, 496 mm L

TUBE - steering, lower right-hand, to closed end of cylinder

1шт.

27

L78949

U-BOLT

- 5/16" - 18 NC

4шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

29

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

30

1976862C1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-44

2шт.

84311413R

REMAN-HYD CYLINDER

621 (PRIOR TO S/N JAK0021701) P.I.N. JAK0020901 AND AFTER; Reman for New P/N '1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

31

L126418

PIN,38mm OD x 111mm L

- cylinder mounting

4шт.

32

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

33

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin

2шт.

34

S109722

WASHER,38.1mm ID x 76.2mm OD x 3.17mm Thk

- special, thrust

2шт.

35

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

BEARING - self-aligning

2шт.

36

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - retaining, cylinder mounting

4шт.

37

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

2шт.

38

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Hose

1шт.
