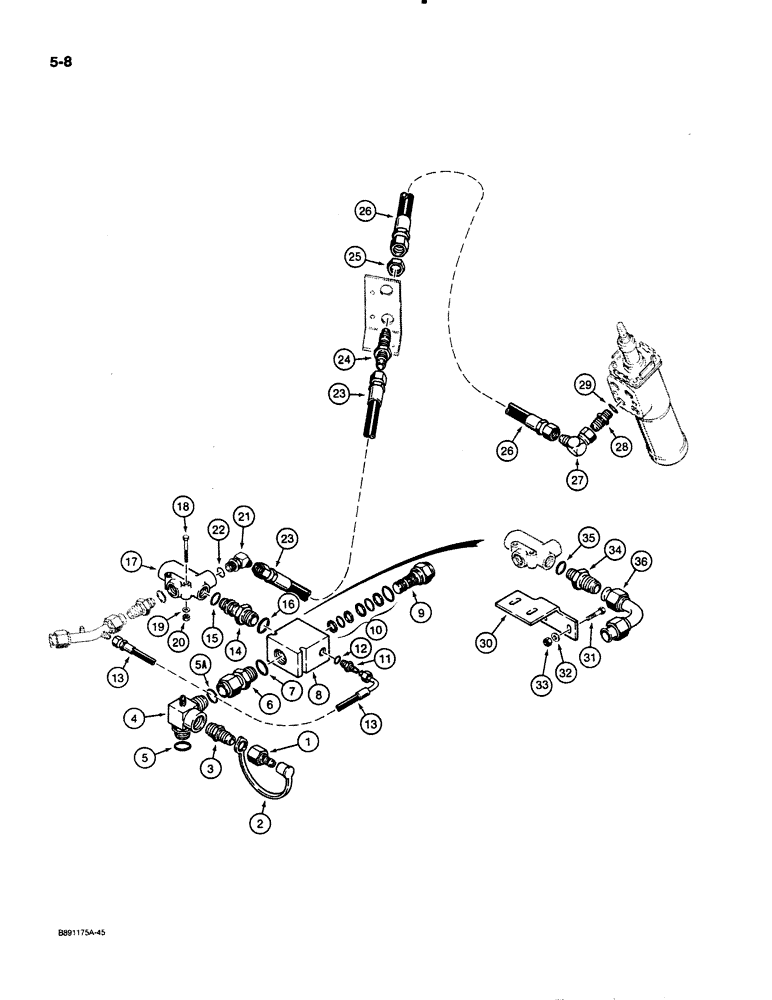

Запчасти Case 621 (5-08) - STEERING HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

1

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

2

H434163

DUST CAP

CAP - dust

1шт.

3

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight

1шт.

4

L126272

MANIFOLD

FITTING - pump

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, boss end

1шт.

5a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End -021, 90 Duro, .926" ID x .070" Thk

1шт.

6

L126332

TUBE,25.4 mm OD x 65.09 mm L

ADAPTER - special, fitting to pressure regulating valve, if used

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

L116570

VALVE

ASSEMBLY - pressure regulating, if used

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

9

1978122C1

VALVE

- pressure regulating

1шт.

10

1978123C1

SEAL KIT

KIT - seal, valve

1шт.

11

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, if used

1шт.

13

L126490

HOSE ASSY.

HOSE - 12-1/2" (318 mm) long, pressure regulating valve to tube at flow control valve, if used

1шт.

14

L118935

ADAPTER

- special, pressure regulating valve to flow control valve, if used

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- small, flow control valve end

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large, pressure regulating valve end

1шт.

17

L48888

FLOW DIVIDER

VALVE ASSEMBLY - flow control, parts list Figure 5-42

1шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 2-1/2", zinc plated

2шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

21

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

23

L126913

HOSE,0.63" ID x 15.75", SAE 100R2A or SAE 100R2AT

Flow Control Valve to Hose at Steering Control Valve 0.63" ID x 15.75", SAE 100R2A or SAE 100R2AT

1шт.

24

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

25

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NF

1шт.

26

L124238

HOSE

- 23-5/8" (600 mm) long, hose at flow control valve to steering control valve

1шт.

27

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street, Hose to adapter at steering control valve 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, elbow to steering control valve

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

30

L127271

BRACKET

- mounting, flow control

1шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

33

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

34

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1 inch flare x 5/8 O-ring boss

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

L127269

TUBE,25.4 mm OD x 100, 100 mm L

- at flow control valve, replaces pressure regulating valve in some assemblies

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.
