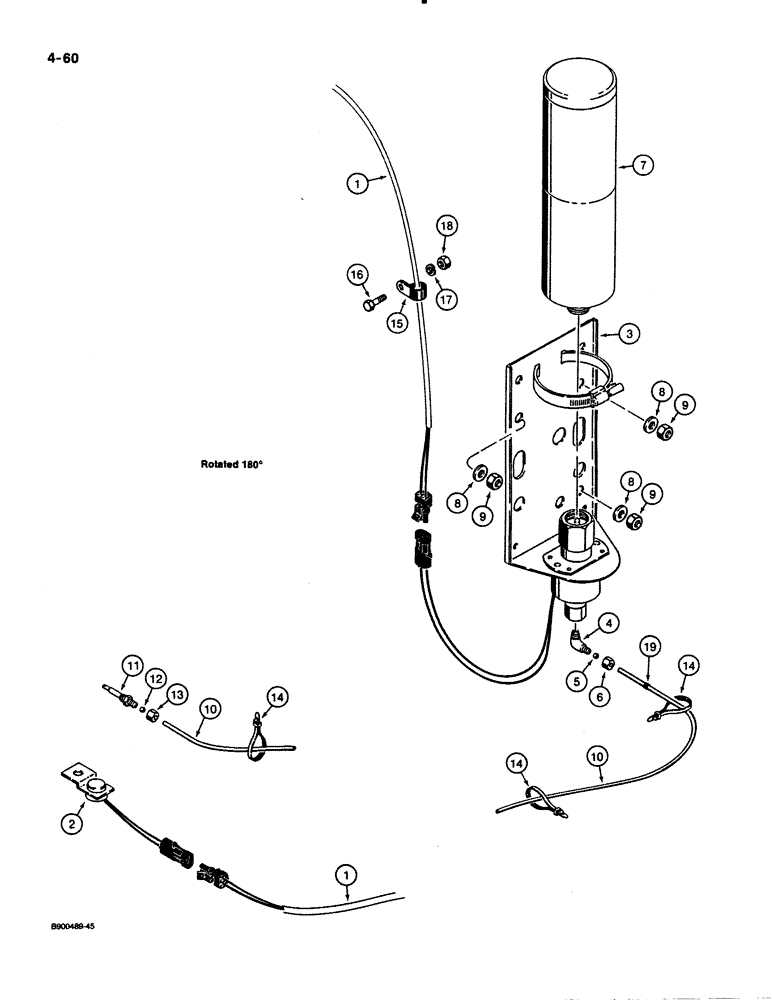

Запчасти Case 621 (4-60) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

L126924

HARNESS

- rear, prior to P.I.N. JAK0020620, see Figures 4-24 and 4-26

1шт.

1

L127341

HARNESS

- rear, P.I.N. JAK0020620 through JAK0020900, see Figures 4-24 and 4-26

1шт.

1

L127358

HARNESS

- rear, P.I.N. JAK0020901 and after, see Figures 4-28 and 4-30

1шт.

2

L126191

THERMOSTATIC SWITCH

- circuit breaking, includes lead wires, use existing engine hardware

1шт.

L126094

VALVE

ASSEMBLY - solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - component parts not serviced separately

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Valve outlet 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube, brass 5/16"-24, 45º Fl, Comp

1шт.

7

A171940

CYLINDER

- starting fluid

1шт.

8

S95569

WASHER

- flat, 1/2", hardened, plated

3шт.

9

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

10

A172361

TUBE

- nylon, 1/8" (3 mm) x 72" (1829 mm) long, cut from L60539, see below

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube, brass 5/16"-24, 45º Fl, Comp

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

49845

CLAMP

- harness, if used

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, if used

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, If used

1шт.

19

L77834

GROMMET

- rubber, nylon tube, if used

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 14 ft (427 cm) long

1шт.
