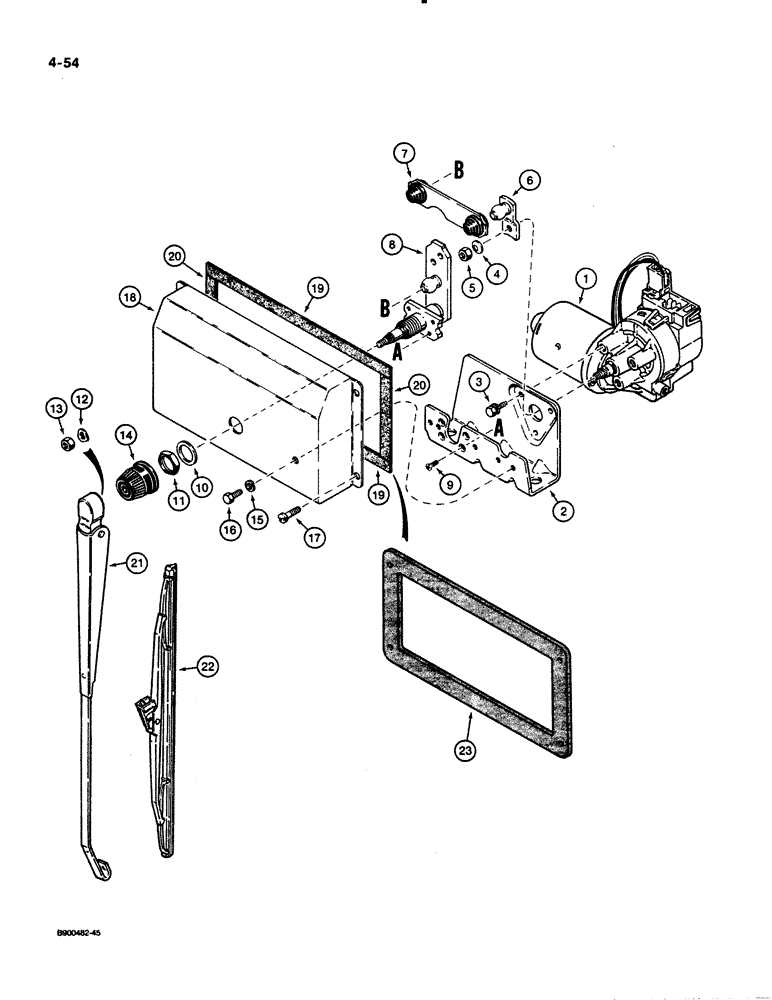

Запчасти Case 621 (4-54) - CAB REAR WIPER (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, rear windshield wiper, 24 volt

1шт.

1

A187535

WIPER MOTOR

MOTOR - 24 volt, windshield wiper, included in A187672 motor assembly

1шт.

2

N8359

SUPPORT

BRACKET - wiper

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER ASSEMBLY - mounting

3шт.

4

N8361

SPRING WASHER

- spring, retaining

1шт.

5

L112090

NUT

- hex, 8 mm, retaining

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8358

LINK

LINK - wiper

1шт.

8

N14112

SHAFT

AND PIVOT - wiper

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- bracket

4шт.

10

L112088

WASHER

- flat, 20 x 29 x 1 mm, shaft

1шт.

11

L112087

NUT

- hex, 20 mm - 1, shaft

1шт.

12

L112089

WASHER

- spring, 8mm

1шт.

13

L112090

NUT

- hex, 8 mm, retaining

1шт.

14

L112081

CAP

- wiper

1шт.

15

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4 NC x 3/4 inch

4шт.

18

1339894C1

COVER

- mounting, rear wiper

1шт.

19

1981919C1

WIPER SEAL

- 260 mm long, rear wiper cover, no longer available, order 1345074C1 seal, item 23

2шт.

20

1981920C1

WIPER SEAL

- 110 mm long, rear wiper cover, no longer available, order 1345074C1 seal, item 23

2шт.

21

A187712

WIPER ARM,Single, 500mm L

ARM - windshield wiper, 14-3/4 inch (375 mm) long, complete

1шт.

22

A186258

BLADE

- wiper arm

1шт.

23

1345074C1

GASKET,5mm Thk

- rear wiper cover, replaces 1981919C1 and 1981920C1 seals, items 19 and 20

1шт.
