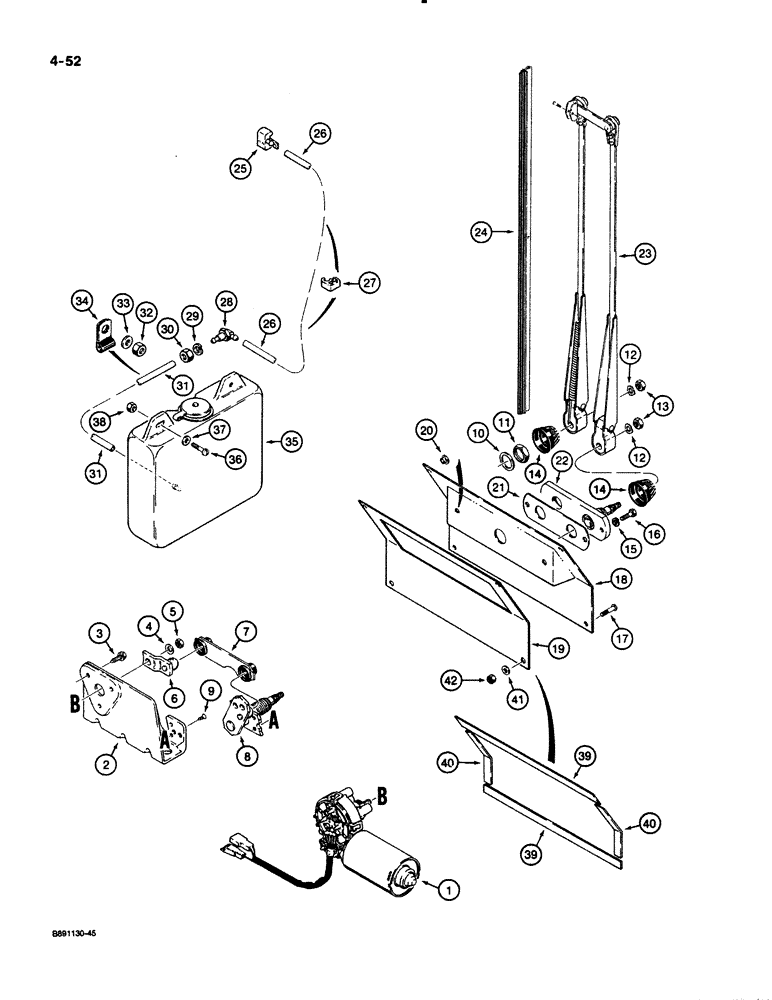

Запчасти Case 621 (4-52) - FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, front windshield wiper, 24 volt

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

1

A187535

WIPER MOTOR

MOTOR - 24 volt, windshield wiper, included in A187534 motor assembly

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW ASSEMBLY - with washer, special, motor to bracket

3шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

4

N8361

SPRING WASHER

SPRING - belleville, washer

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

7

A187835

ROD

LINK - wiper

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

8

A187836

CROSS SHAFT

SHAFT - pivot

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

10

L112088

WASHER

- special, large, shaft

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

11

L112087

NUT

- special, large, shaft

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

12

L112089

WASHER

- wave, special, shaft end

2шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

13

L112090

NUT

- hex, special, 8 mm, shaft end

2шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

14

L112081

CAP

- pivot shaft end

2шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

15

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

16

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4"

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

17

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4" - 20 NC x 3/4"

4шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

18

1339586C1

COVER

- mounting, front wiper

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

19

1977950C1

GASKET

- cover, no longer available, order 1981919C1 and 1340076C1 seals

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- 5/16", black, wiper cover

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

21

A186219

GASKET,1.5mm Thk

- pivot

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

22

A186220

PIVOT ASSY.

PIVOT - wiper arm

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

23

A187964

WIPER ARM

ARM - windshield wiper, 27-1/2" (700 mm) long

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

24

A187574

WIPER BLADE

BLADE - windshield wiper, 27-1/2" (700 mm) long

1шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

Ref. 24 now has a refill P/N 234594A1. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

25

1970002C1

JET

NOZZLE - fluid, windshield wiper

1шт.

26

1964827C1

PIPE

HOSE - nozzle to elbow, 32" (810 mm) long

1шт.

27

1970003C1

CLIP,ELECTRICAL

CLIP - hose, to wiper arm

2шт.

28

1968053C1

ELBOW

- 90 degree

1шт.

29

N8361

SPRING WASHER

- lock, 8 mm

1шт.

30

825-1108

NUT,Hex, M8, Cl 8

1шт.

31

1964828C1

PIPE

HOSE - elbow to fluid reservoir, 45" (1145 mm) long

1шт.

32

425-106

NUT,3/8"-16, Cl 5

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

34

R14668

CLAMP

- hose

3шт.

35

A187527

RESERVOIR ASSY.

RESERVOIR ASSEMBLY - with pump, windshield wiper fluid

1шт.

36

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4" - 20 NC x 3/4", plated

2шт.

37

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", teflon

2шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

39

1981919C1

WIPER SEAL

- 260 mm long, adhesive back

2шт.

40

1340076C1

WIPER SEAL

- 150 mm long, adhesive back

2шт.

41

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, if used

4шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.

42

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

4шт.

Included in P/N L36339 canopy windshield and wiper kit on Fig. 9-98.

1шт.
