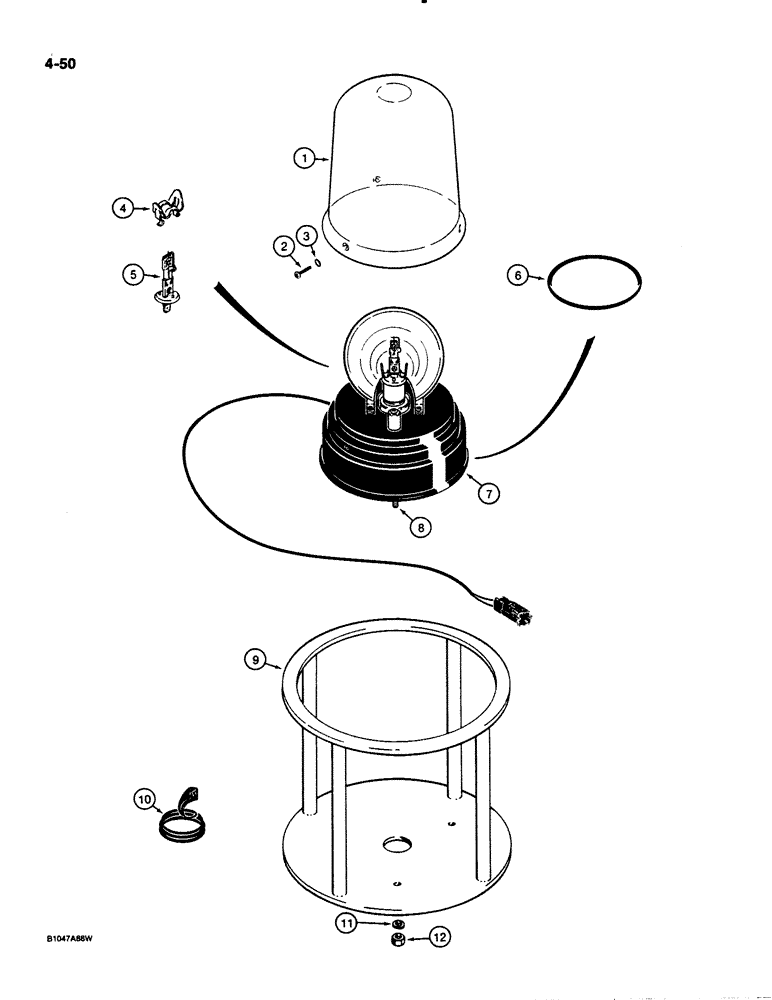

Запчасти Case 621 (4-50) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating

1шт.

1

A187542

LENS

- beacon, amber

1шт.

Ref #1A - 127158A1 Blue Lens

1шт.

Ref #1 (Amber)

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, No. 8 x 1/2 inch, Lens mounting

3шт.

3

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL - lens mounting screw

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bulb

1шт.

5

A187543

BULB,H1 24V 70W

- halogen, rotating beacon

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - with drive motor, rotating beacon

1шт.

8

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.0 x 20 mm

3шт.

9

L124809

CAGE

- beacon

1шт.

10

L109042

GASKET

TRIM - edge, 12-7/8 inch (350 mm) long, cut from D52812 trim, see below

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

12

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm, Grade 10

3шт.

D52812

RUBBER STRIP

TRIM - 83 inch (2108 mm) long, cut to required length

1шт.
