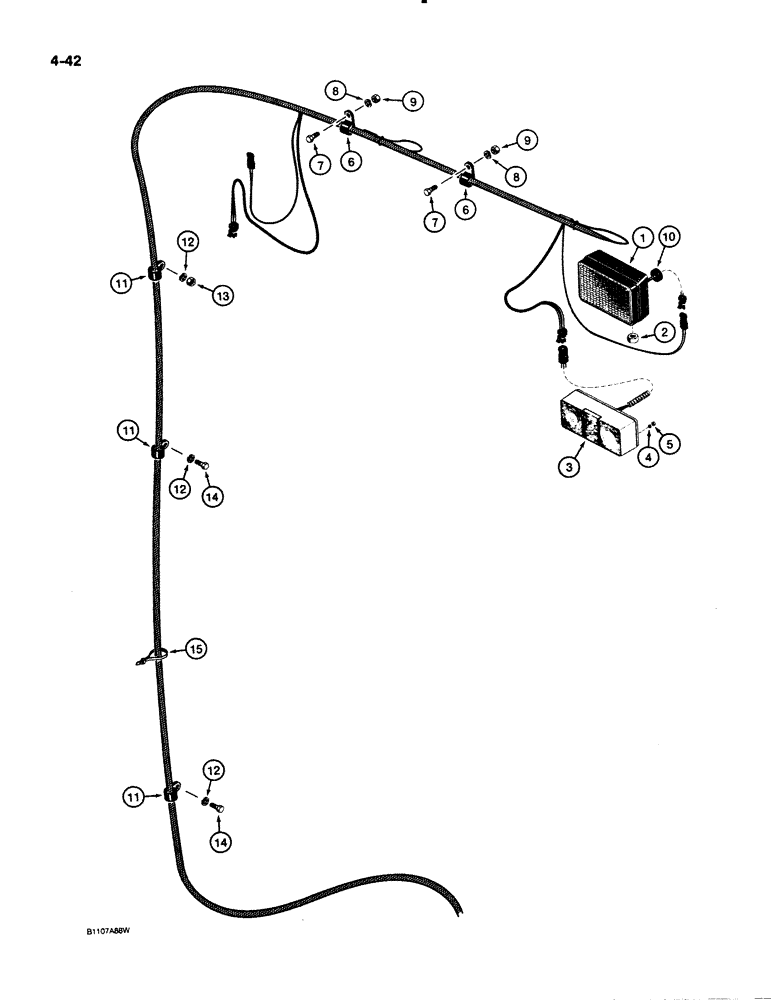

Запчасти Case 621 (4-42) - REAR LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list Figure 4-44

2шт.

2

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

3

A186294

LIGHT ASSY.

LAMP - stop and tail, parts list Figure 4-48

2шт.

4

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm, plated

8шт.

5

825-1105

NUT,M5, Cl 8

- hex, 5 mm - 0.8, plated

8шт.

6

49838

CLAMP

- wire

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

L124504

GROMMET

- split

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- wire

3шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
