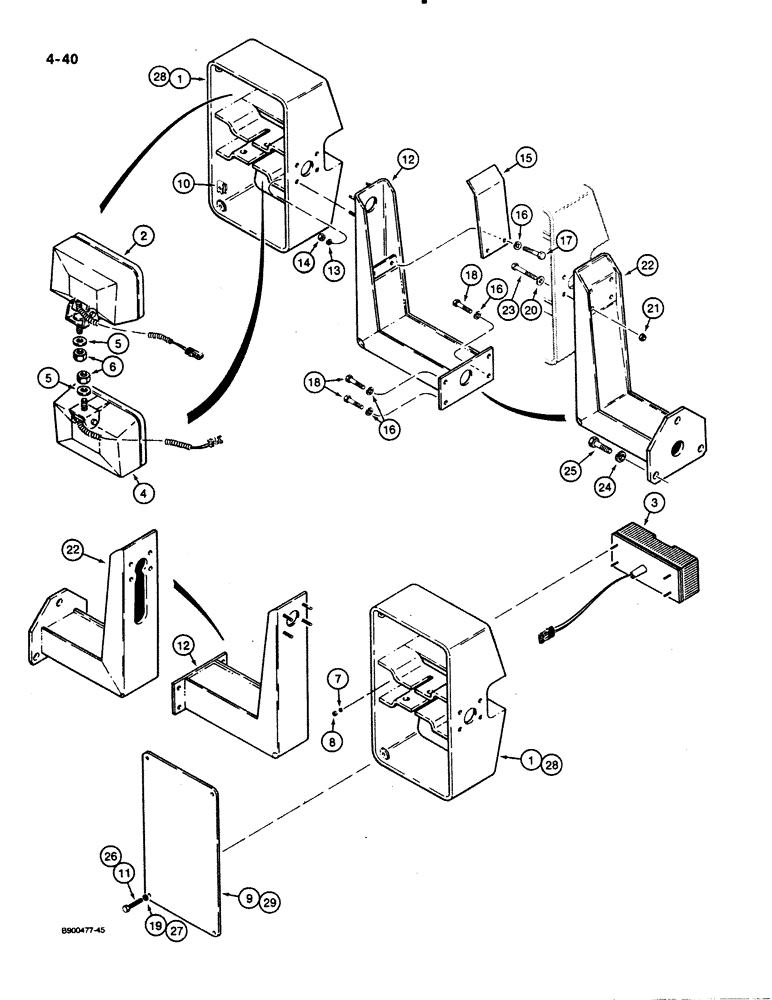

Запчасти Case 621 (4-40) - FRONT LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

L124682

HOUSING

- metal, front lamp, no longer available, order Ref. 26, 27, 28 and 29 shown on this figure

2шт.

2

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front, drive, see parts list Figure 4-44

2шт.

3

A186292

LIGHT ASSY.

LAMP ASSEMBLY - turn signal and flasher, see parts list Figure 4-46

2шт.

4

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, see parts list Figure 4-44

2шт.

5

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

4шт.

6

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, , Special 1/2"-13, GB, Thin

4шт.

7

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

8

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

8шт.

9

L124641

COVER

- housing, lamp, use with L124682 metal housing, Ref. 1

2шт.

10

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

8шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

12

L124700

BRACKET

- mounting, lamp, no longer available, order L36323 bracket kit, see below

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , use with Ref. 12, L124700 bracket 5/16"

8шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Use with Ref. 12, L124700 bracket

8шт.

15

L124693

COVER

- harness, use with Ref. 12, L124700 bracket

2шт.

16

492-11038

LOCK WASHER,3/8"

use with Ref. 12, L124700 bracket 3/8"

10шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Use with Ref. 12, L124700 bracket

4шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", use with Ref. 12, L124700 bracket

6шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

20

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

Part of bracket kit P/N L36323.

1шт.

21

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

Part of bracket kit P/N L36323.

1шт.

22

L126955

BRACKET

- mounting, lamp

2шт.

Part of bracket kit P/N L36323.

1шт.

23

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

8шт.

Part of bracket kit P/N L36323.

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

Part of bracket kit P/N L36323.

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

Part of bracket kit P/N L36323.

1шт.

26

363-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

- machine, No. 10 NC x 1-1/2 inch, use with L124682 housing, Ref. 1

8шт.

27

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Use with L124682 housing, Ref. 1 #10

8шт.

28

L126951

HOUSING

- plastic, front lamp

2шт.

29

L126959

COVER

- housing, lamp, use with L126951 plastic housing, Ref. 28

2шт.

L36323

BRACKET

KIT - bracket, Includes: Ref. 20 - 25 and an instruction sheet

1шт.
