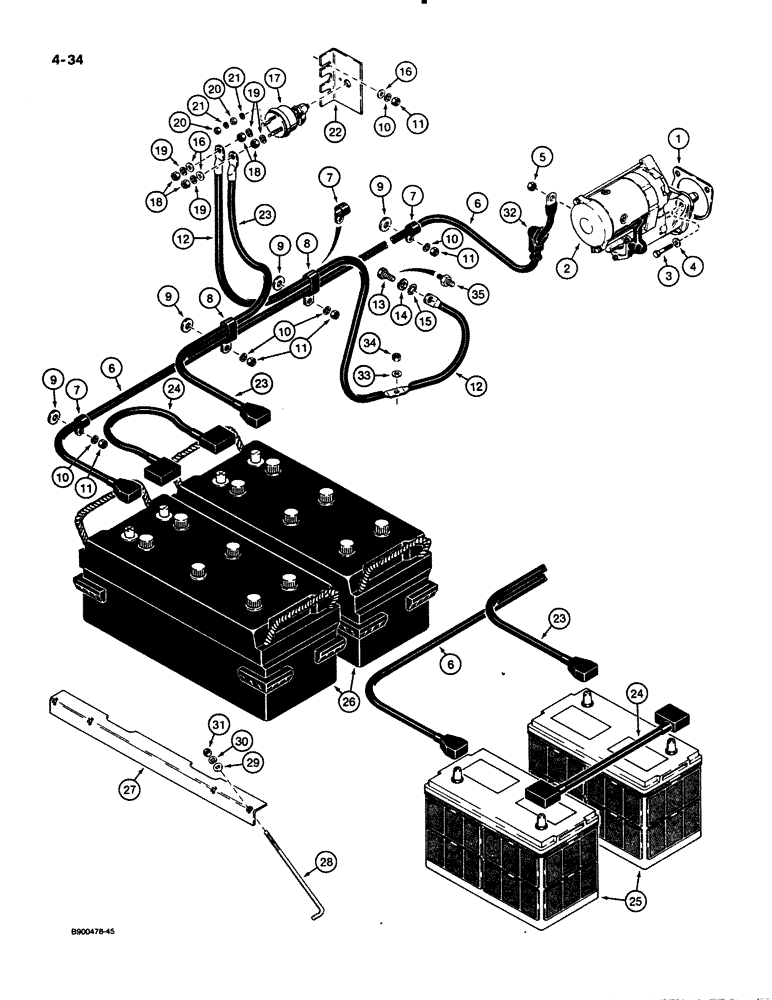

Запчасти Case 621 (4-34) - STARTER, BATTERY, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

L112209

GASKET,0.79mm Thk

- starting motor

1шт.

2

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-6

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm - 1.5 x 40 mm, plated

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

5

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5, plated

1шт.

6

L126109

CABLE

- battery to starter, positive terminal, 2000 mm long, prior to P.I.N. JAK0020901

1шт.

6

L127638

CABLE

- battery to starter, positive terminal, 2100 mm long, P.I.N. JAK0020901 and after

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- battery cable to rear frame

3-4шт.

8

L19029

CLAMP

- double, battery cable to rear frame

1-2шт.

9

S95569

WASHER

- flat, 1/2", hardened, plated, special

5шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

425-106

NUT,3/8"-16, Cl 5

7шт.

12

L124790

CABLE

- ground, engine to disconnect switch

1шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

If used Hex, M12 x 20, 8.8, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, , If Used M12

1шт.

15

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch, if used

1шт.

16

495-21044

WASHER,3/8"

4шт.

L126256

SWITCH

- master disconnect

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

18

129-187

NUT,5/16"-24, Brass

- hex, 3/8" - 24 NF, brass

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

131-573

NUT,#10-32

NUT - hex, self-locking, No. 10 - 32 NF

4шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

22

L126108

SUPPORT

BRACKET - mounting, disconnect switch

1шт.

23

L124788

CABLE

- ground, disconnect switch to battery, negative terminal

1шт.

24

L124738

CABLE

- jumper, Serial Range: battery-battery

1шт.

25

BMF31E

DRY BATTERY

BATTERY, DRY - standard, 12 volt, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY - heavy duty, 12 volt, dry type, service replacement

2шт.

27

L124221

SUPPORT

BRACKET - battery hold down

2шт.

28

L124224

BOLT

BOLT - special, J-type, battery hold down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

4шт.

32

L126713

BOOT

- plastic, harness at starter

1шт.

33

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- special, flat, 3/8", brass

1шт.

34

L127555

NUT,Hex, 3/8" - 16

- special, hex, 3/8" - 16 NC, brass

1шт.

35

L127553

STUD

ADAPTER - stud, brass, if used

1шт.
