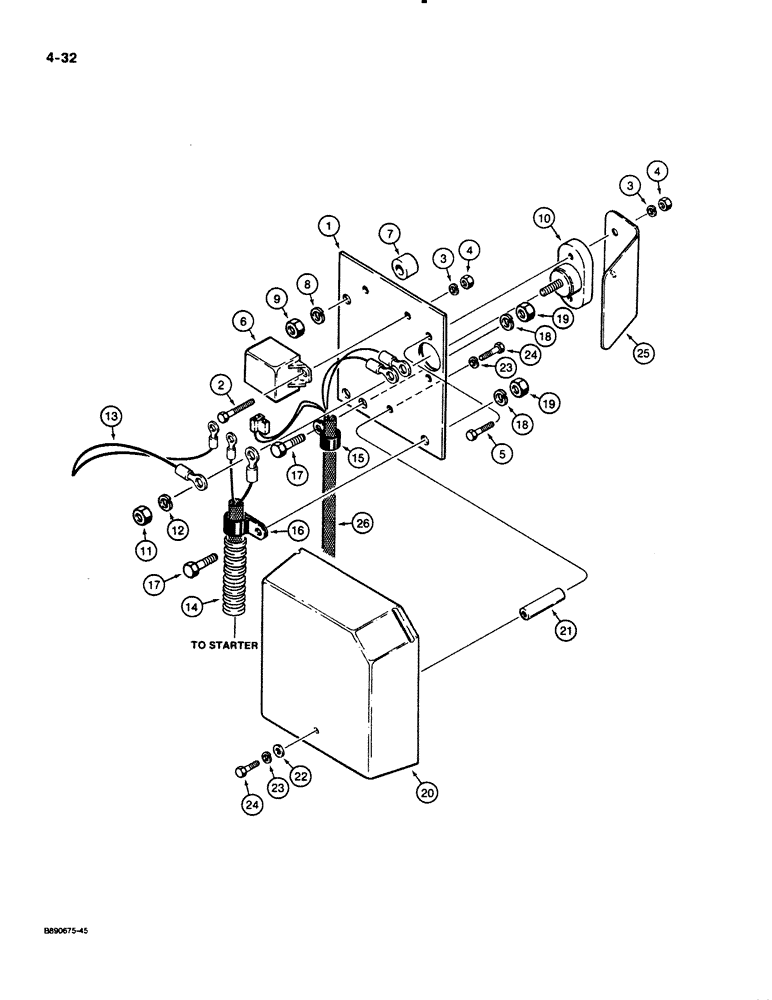

Запчасти Case 621 (4-32) - REAR HARNESS TO RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

L124084

LARGE PLATE

PANEL - relay mounting

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", zinc plated

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, zinc plated

4шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex head, 1/4" - 20 NC x 1", zinc plated

2шт.

6

L115883

RELAY

- starter

1шт.

7

S77915

SPACER

- relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

BLOCK - terminal

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

L124102

ELECTRICAL WIRE

WIRE - jumper

1шт.

14

L124097

CABLE

-, Serial Range: relay-starter

1шт.

15

49838

CLAMP

- harness, prior to P.I.N. JAK0020901, clamp is woven into harness on P.I.N. JAK0020901 and after

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

L114612

COVER

- relay panel

1шт.

21

L114195

SPACER

- relay cover

1шт.

22

495-21031

WASHER,1/4"

- flat, , zinc plated 1/4"

1шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", zinc plated

2шт.

25

L125774

PROTECTOR

SHIELD - heat

1шт.

26

REF

INSTRUCTION

HARNESS - rear, see Figures 4-24 through 4-30 for the correct harness

1шт.
