(4-28) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JAK0020901 AND AFTER

Запчасти Case 621 (4-28) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JAK0020901 AND AFTER (04) - ELECTRICAL SYSTEMS

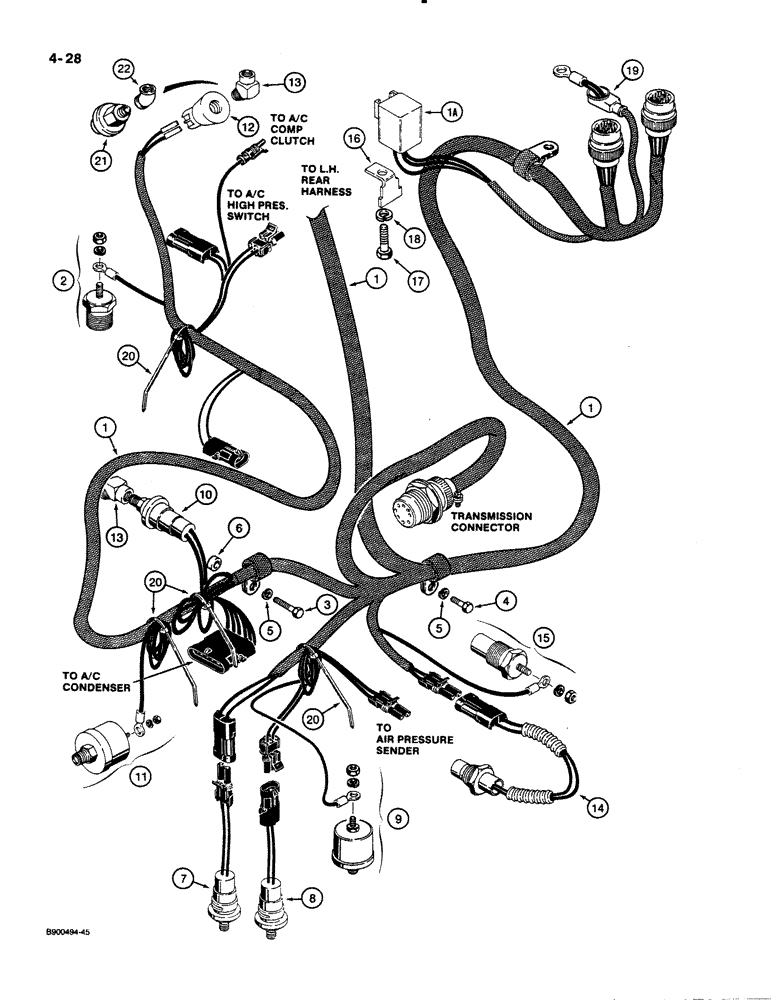

Схема запчастей Case 621 - (4-28) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JAK0020901 AND AFTER (04) - ELECTRICAL SYSTEMS
16
3
7
18
13
1
19
20
2
4
5
8
17
5
6
22
20
15
1
14
9
12
1a
1
20
21
11
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L127358

HARNESS

HARNESS - rear, see Figure 4-30 for continuation of harness

1шт.

1a

A186288

RELAY

RELAY - control, transmission to shifter

1шт.

2

A187529

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

3

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

BOLT - hex head, 12 mm - 1.75 x 40 mm

1шт.

4

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

BOLT - hex head, 12 mm - 1.75 x 20 mm

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

6

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - 23/32 inch long, harness clamp

1шт.

7

A187770

IGNITION SWITCH

SWITCH - declutch, low air

1шт.

8

A187531

SWITCH

SWITCH - pressure, low air

1шт.

9

A187532

PROBE

SENDER - air pressure, brake, use on units with optional gauges, see Figure 4-10

1шт.

10

A187723

SENDER UNIT

SENDER SWITCH - engine oil pressure

1шт.

11

677161R92

SENDER UNIT

SENDER - engine oil pressure, use on units with optional gauges, see Figure 4-10

1шт.

12

A172784

RESTRICTION SWITCH

Air Restriction, no longer available, order 1983233C1, item 21, and 221-365, item 22

1шт.

13

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, Use with item 10, A187723 and item 12, A172784

1-2шт.

14

A187530

TEMPERATURE SENDER

SWITCH - temperature, transmission oil

1шт.

15

S111010

TEMPERATURE SENDER

SENDER - temperature, transmission oil

1шт.

16

L127449

SUPPORT

BRACKET - mounting, transmission shift relay

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

L126713

BOOT

BOOT - plastic, harness at floor of operators compartment

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

21

1983233C1

RESTRICTION SWITCH

SWITCH - air restriction

1шт.

22

221-365

ELBOW,45 Degree, 1/8" NPT

ELBOW - pipe, 45 degree, 1/8 inch

1шт.
