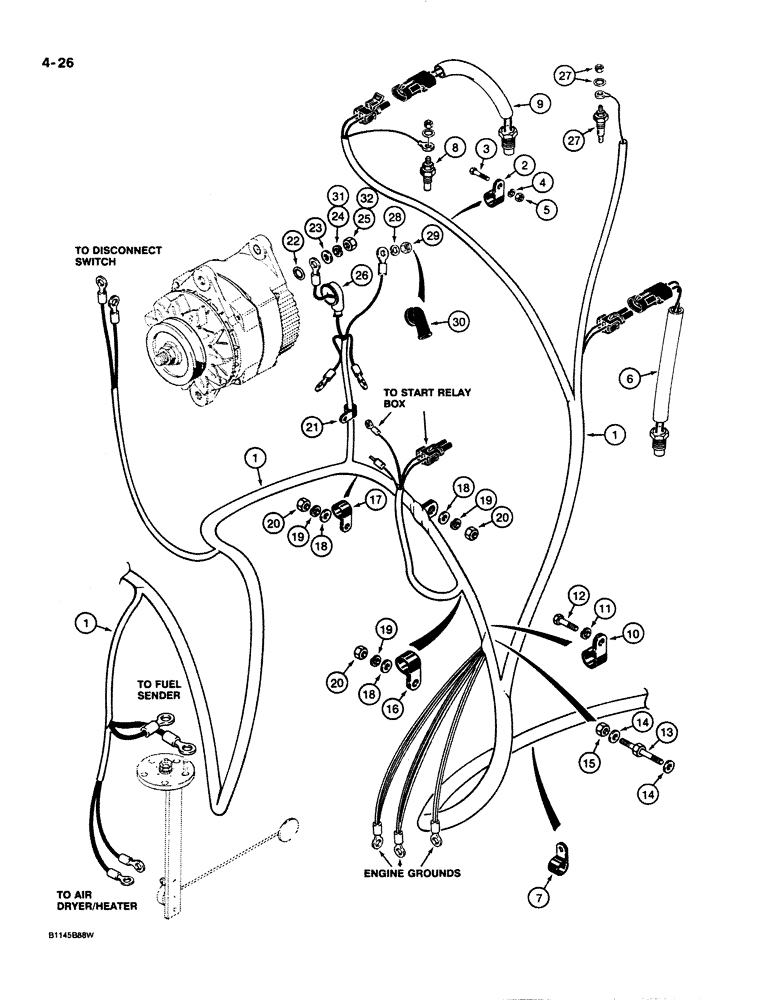

Запчасти Case 621 (4-26) - REAR HARNESS, ENGINE LEFT-HAND SIDE, PRIOR TO P.I.N. JAK0020901 (04) - ELECTRICAL SYSTEMS

1

L126924

HARNESS

- rear, prior to P.I.N. JAK0020620, see Figure 4-24 for continuation of harness

1шт.

1

L127341

HARNESS

- rear, P.I.N. JAK0020620 through JAK0020900, see Figure 4-24 for continuation of harness

1шт.

2

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness, at oil filter

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

A187530

TEMPERATURE SENDER

SWITCH - temperature, hydraulic oil

1шт.

7

49845

CLAMP

- harness, use existing hardware

1шт.

8

S111010

TEMPERATURE SENDER

SENDER - temperature, transmission oil

1шт.

9

A187530

TEMPERATURE SENDER

SWITCH - temperature, transmission oil

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

813-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm

1шт.

13

L127553

STUD

ADAPTER - stud, brass, engine ground mount

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, 3/8", brass, special

2шт.

15

L127555

NUT,Hex, 3/8" - 16

- hex, 3/8" - 16 NC, brass, special

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, large

1шт.

17

49838

CLAMP

- harness, small, if used

1шт.

18

195-2058

WASHER,5/8" x 1 1/4" x .134"

- flat, 9/16" ID x 1-1/4" OD, special

3шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

425-106

NUT,3/8"-16, Cl 5

3шт.

21

49838

CLAMP

- harness to alternator, if used, use existing hardware

1шт.

22

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated, use with 45 amp alternator

2шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Use with 45 amp alternator M6

1шт.

24

892-1106

LOCK WASHER,M6

plated, Use with 45 amp alternator M6

1шт.

25

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated, use with 45 amp alternator

1шт.

26

L126713

BOOT

- plastic, harness at alternator

1шт.

27

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, hydraulic oil, parts list Figure 8-44

1шт.

28

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

29

825-1404

NUT,M4, Cl 8

1шт.

30

S64612

BOOT

- rubber, use with 65 amp alternator

1шт.

31

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Use with 65 amp alternator 7/16"

1шт.

32

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Use with 65 amp alternator

1шт.
