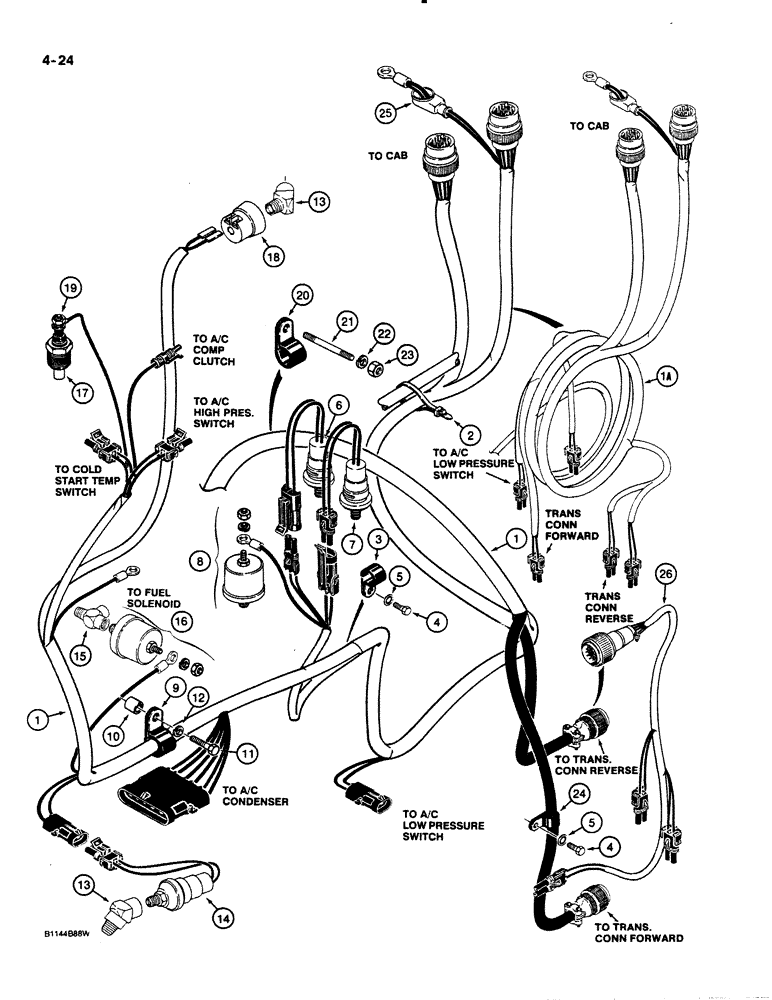

Запчасти Case 621 (4-24) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, PRIOR TO P.I.N. JAK0020901 (04) - ELECTRICAL SYSTEMS

1

L126924

HARNESS

- rear, prior to P.I.N. JAK0020620, see Figure 4-26 for continuation of harness

1шт.

1a

L127341

HARNESS

- rear, P.I.N. JAK0020620 through JAK0020900, see Figure 4-26 for continuation of harness

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

51200329

CLIP

CLAMP - harness, at torque converter

1шт.

4

813-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm

2шт.

5

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

6

A187770

IGNITION SWITCH

SWITCH - declutch, low air

1шт.

7

A187531

SWITCH

- pressure, low air

1шт.

8

A187532

PROBE

SENDER - air pressure, brake, use on units with optional gauges

1шт.

9

T50103

CLAMP

- harness, at engine

1шт.

10

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - clamp

1шт.

11

813-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 X 40 mm

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

13

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

2шт.

14

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

15

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8" NPT, used with item 16, 677161R92 sender

1шт.

16

677161R92

SENDER UNIT

SENDER - engine oil pressure, use on units with optional gauges

1шт.

17

A187529

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

18

A172784

RESTRICTION SWITCH

SWITCH - restriction, air filter

1шт.

19

129-37

NUT,#10-32

1шт.

20

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, rear, torque converter

2шт.

21

L118998

STUD

- adapter ring

2шт.

22

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

49839

CLAMP

- harness, transmission

1шт.

25

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

26

L127319

HARNESS

- jumper, use with L127455 replacement transmission on models prior to P.I.N. JAK0020620, see Figure 6-4

2шт.
