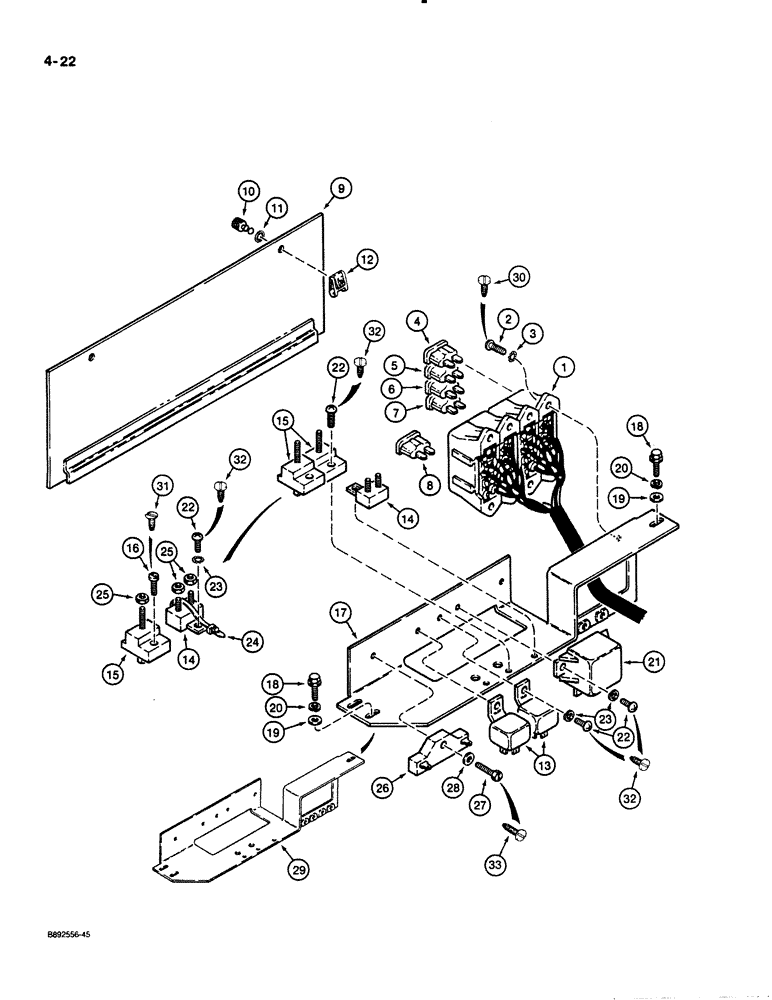

Запчасти Case 621 (4-22) - CANOPY HARNESS, OPERATORS COMPARTMENT, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS

1

A187701

HARNESS

- ROPS canopy, P.I.N. JAK0020286, no longer available, order A187886 harness and A187798 rocker switch, see Figure 4-8, item 15

1шт.

1

A187886

SWITCH

HARNESS - ROPS canopy, P.I.N. JAK0020286 and after

1шт.

2

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

4шт.

3

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

5

A149798

FUSE

- 5 ampere (Tan)

2шт.

6

A149799

FUSE

- 7.5 ampere (Brown)

4шт.

7

A149800

FUSE,10 Amp

- 10 ampere (Red)

5-6шт.

One A149800 fuse is included in L36339 canopy windshield and wiper kit shown on Figure 9-98

1шт.

8

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

9

1977999C2

COVER

- fuse box

1шт.

10

1970049C2

STUD

- fuse box

2шт.

11

1981869C1

WASHER

- stud

2шт.

12

A36042

CLIP

RECEPTACLE - quarter turn

2шт.

13

A186288

RELAY

- mini

2шт.

14

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 amp, includes bracket, if used

1шт.

14

1964993C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 amp, includes bracket, with plastic housing and seal, if used

1шт.

15

245539C1

CONNECTION

BLOCK - junction

1-2шт.

16

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head slotted, No. 10 NC x 5/8 inch

1шт.

17

1970035C1

SUPPORT

HOUSING - power distribution center, includes weldnuts, uses items 2,16,22, and 27 screws, no longer available, order item 29, 1970034C3 housing

1шт.

18

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex flange, 1/4 NC x 3/4 inch

3шт.

19

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

3шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

L115883

RELAY

- cab power

1шт.

22

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

5шт.

23

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

5шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

26

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm, if used

1шт.

27

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex, slotted, No. 10 x 1 inch

1шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

1шт.

29

1970034C3

HOUSING

- power distribution center, uses items 30 through 33 screws

1шт.

30

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, self-tapping, No. 10 NC x 5/8 inch

4шт.

31

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, No. 10 NC x 5/8 inch

1шт.

32

263-1056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head, self tapping, No. 10 NC x 1/2 inch

5шт.

33

26489R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - pan head, self tapping, No. 10 NC x 1 inch

1шт.
