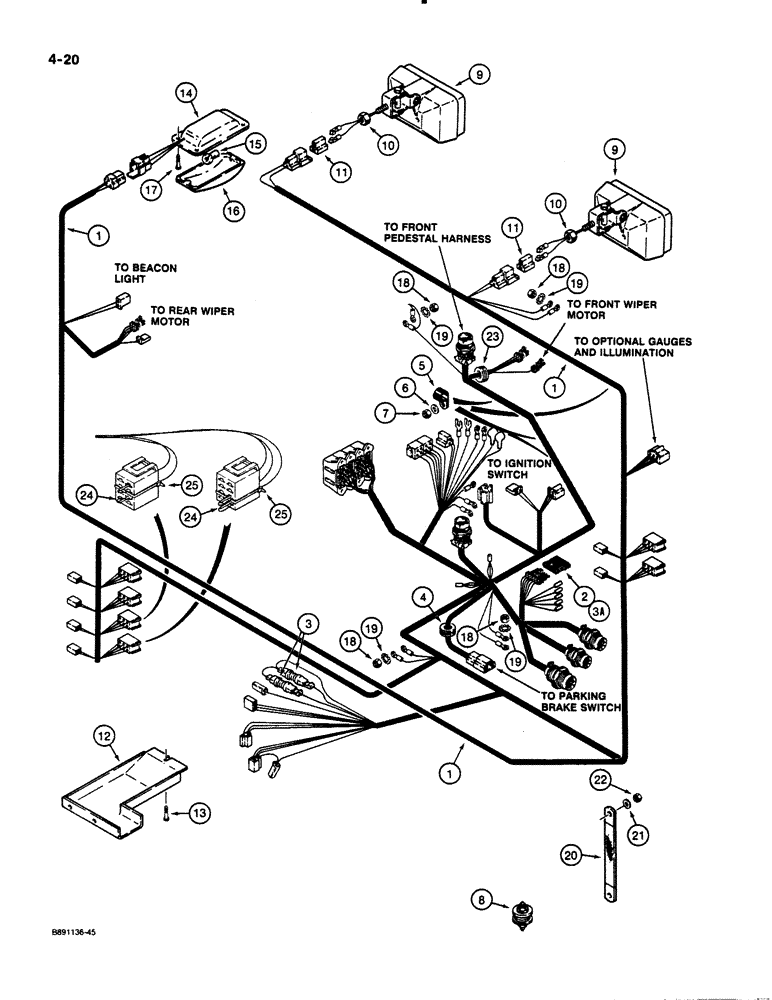

Запчасти Case 621 (4-20) - CANOPY HARNESS, OPERATORS COMPARTMENT, LAMPS (04) - ELECTRICAL SYSTEMS

1

A187701

HARNESS

- ROPS canopy, prior to P.I.N. JAK0020286, no longer available, order A187886 harness and A187798 rocker switch, see Figure 4-8, item 15

1шт.

1

A187886

SWITCH

HARNESS - ROPS canopy, P.I.N. JAK0020286 and after center

1шт.

2

A187813

DIODE

RECTIFIER - module diode, connects to harness below instrument panel, included with A187886 harness

1шт.

3

548239R2

RECTIFIER

- module diode

2шт.

3a

A187813

DIODE

RECTIFIER - module diode, connects to harness below the instrument panel, purchase separately with A187701 harness

1шт.

4

1973557C1

GROMMET

- rubber, seat platform on left-hand side to parking brake switch

1шт.

5

R14668

CLAMP

- harness retaining

4шт.

6

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 1/4 inch NC

4шт.

8

A187523

JUNCTION BLOCK

CONNECTOR - harness, includes hardware

1шт.

9

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, upper, parts list Figure 4-44

2шт.

10

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

11

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to flood lamp

2шт.

12

1973511C3

COVER

- harness, upper right-hand rear

1шт.

13

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

A186296

LAMP

ASSEMBLY - 24 volt, dome, for service order 245659C91 12 volt lamp assembly and 456602 24 volt bulb

1шт.

245659C91

LAMP

ASSEMBLY - 12 volt, dome, service replacement, use with 24 volt bulb

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

15

456602

BULB,2C2R, #1692, 28V

- 24 volt, dome lamp, No. 1692, type 2C2R

1шт.

16

245679C1

LENS

- dome light, use with A186296 or 245659C91

1шт.

17

171-238

SCREW,Sl Flat Hd, #8 - 32 x 5/8"

- machine, flat head slotted, No. 8 NC x 5/8 inch

4шт.

18

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to cab frame 3/8"-16, G5

4шт.

19

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - tooth lock, 3/8 inch, mounts ground wires to cab frame

4шт.

20

L126051

GROUND STRAP

STRAP - ground

1шт.

21

L126317

COPPER WASHER

WASHER - flat, 11.11 x 25.4 x 1.98 mm, copper

2шт.

22

L126318

NUT

- hex, 3/8 inch NC, copper

2шт.

23

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- wiper wire

1шт.

24

L127013

ELECTRICAL WIRE

CABLE - jumper, if used

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, if used

2шт.
