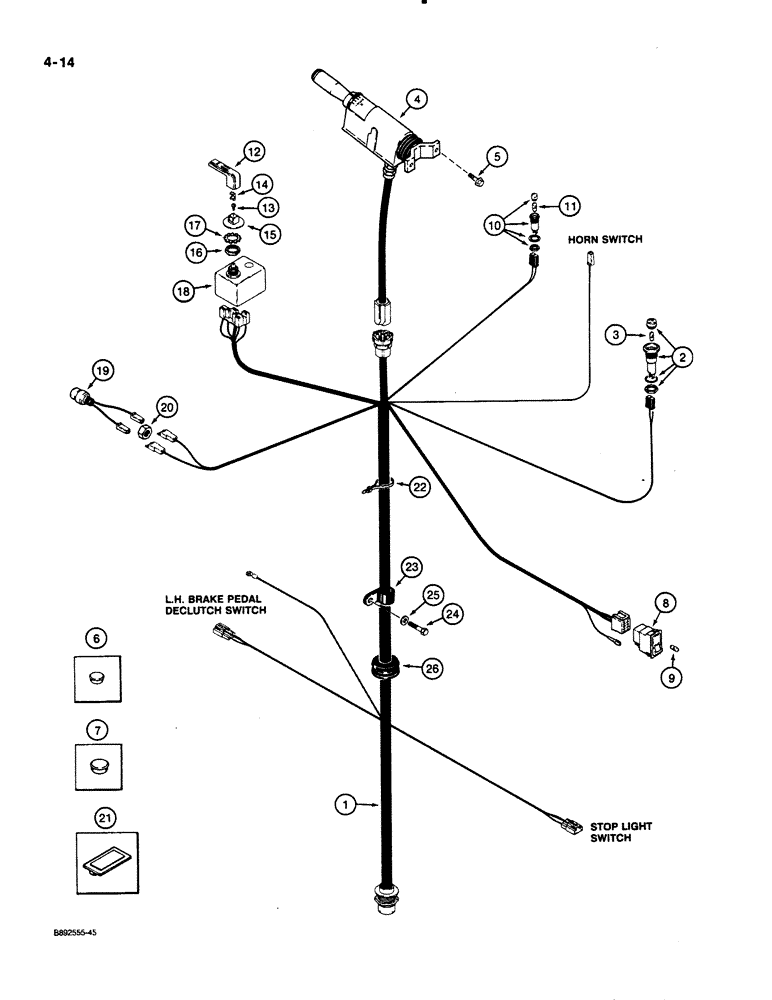

Запчасти Case 621 (4-14) - HARNESS, PEDESTAL (04) - ELECTRICAL SYSTEMS

1

A187710

HARNESS

- pedestal

1шт.

2

A186268

LAMP

ASSEMBLY - master warning, includes lens cap and mounting hardware

1шт.

3

193067

BULB,C2F, #313, 28V

- lamp, No. 313

1шт.

4

A187760

SELECTOR

CONTROL - transmission, speed selector

1шт.

A187760 REF # 4 INCLUDES THE FOLLOWING CAP FOR HANDGRIP = 109889A1 HANDGRIP ASSY = 109890A1 RUBBER BOOT = 109896A1 CAN = 109895A2 BALL = 109894A2 SEE PARTS INFO SCREEN FOR COMPLETE BREAKDOWN

1шт.

Ref. 4 Housing Speed Selector Bracket is P/N 198777A1 complete break down of Shifter can be found 4-62B of 721 manual 8-4412.

1шт.

4

75239663R

REMAN-JOYSTICK

621 CASE WHEEL LOADER (PRIOR TO S/N JAK0021701) (NORTH AMERICA), Control transmission, speed selector, Reman for New PN A187760

1шт.

4

75239663C

CORE-JOYSTICK

Return Number

1шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, 8 mm - 1.25 x 25 mm

2шт.

6

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, used on units without item 19, A135520

1шт.

7

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/16 inch, used on units without item 18, L127265

1шт.

8

A187589

SWITCH

- rocker, flasher lamp

1шт.

9

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1

1шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

11

T39215

BULB

- indicator lamp, No. 1820

1шт.

12

97103C3

LEVER

- turn signal

1шт.

13

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- machine, pan, No. 5 NF x 3/8 inch

1шт.

14

1329896C1

CLASP

CLIP - retaining, lever

1шт.

15

97102C1

ADAPTER

- lever, turn signal

1шт.

16

D91352

JAM NUT

- hex, jam, 3/4 inch NS

1шт.

18

L127265

SWITCH

- turn signal

1шт.

19

A135520

SWITCH

- cold start

1шт.

20

425-1110

NUT,5/8"-18, G5

1шт.

21

245918C1

LENS

PLUG - rocker switch, used on units without item 8, A187589

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

R14668

CLAMP

- harness retaining

1шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

26

1970021C1

GROMMET

- harness, cab floor

1шт.
