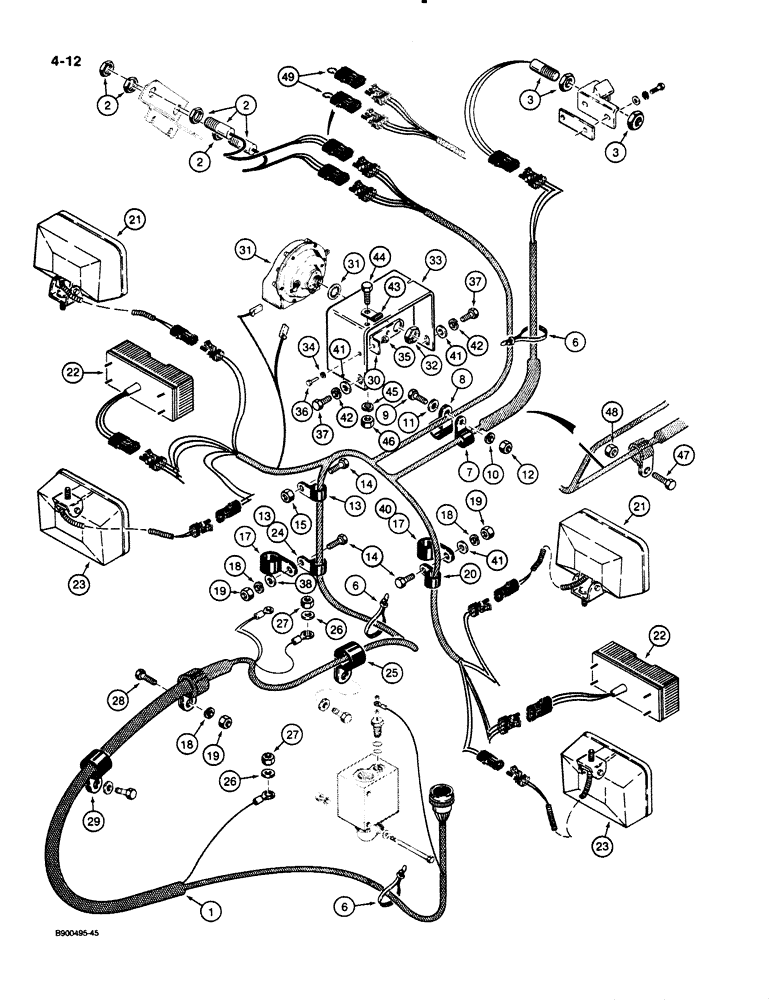

Запчасти Case 621 (4-12) - FRONT HARNESS, LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L126375

HARNESS

- front, includes two clamps

1шт.

2

A186283

IGNITION SWITCH

SWITCH - proximity, height control and return-to-transport, includes hardware

2шт.

3

A187552

SWITCH

- wiper arm, proximity, return-to dig, includes hardware

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- wire, small, if used

1шт.

8

S98801

CLAMP

- wire, large, if used

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated, if used

1шт.

10

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

11

495-21050

WASHER,7/16"

- flat, , zinc plated, if used 7/16"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

13

49845

CLAMP

- harness, use on models with, Serial Range: return-dig

1-2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

3шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

17

D40471

CLAMP

- tube, left hand, right hand replaced with item 40, D34033

1-2шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

49838

CLAMP

- harness, front lamps

1-2шт.

21

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP - front, drive, parts list Figure 4-44

2шт.

22

A186292

LIGHT ASSY.

LAMP - turn signal and flasher, parts list Figure 4-46

2шт.

23

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP - flood, parts list Figure 4-44

2шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, replaces item 13, 49845 clamp, use on models with return to dig, height control and return-to-transport

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-type, wire, use existing hardware

1шт.

26

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, 3/8", brass, special

2шт.

27

L127555

NUT,Hex, 3/8" - 16

- hex, 3/8" - 16 NC, brass, special

2шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

1шт.

29

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, front, use existing hardware

1шт.

30

L73799

BRACKET

- mounting, horn

1шт.

31

L10353

HORN

- electric, includes internal tooth lock washer

1шт.

32

L30866

LOCK NUT

- hex, 7/8" - 9 NC, special

1шт.

33

L126838

COVER

- horn

1шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

36

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

37

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

38

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

40

D34033

CLAMP

- tube, right-hand, replaces item 17, D40471

1шт.

41

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

42

492-11038

LOCK WASHER,3/8"

2шт.

43

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, return to dig

1шт.

44

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

45

492-11038

LOCK WASHER,3/8"

1шт.

46

425-106

NUT,3/8"-16, Cl 5

1шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

48

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

49

L127785

HARNESS

CONNECTOR - jumper wire, use when height control and return-to- transport option is not used

2шт.
