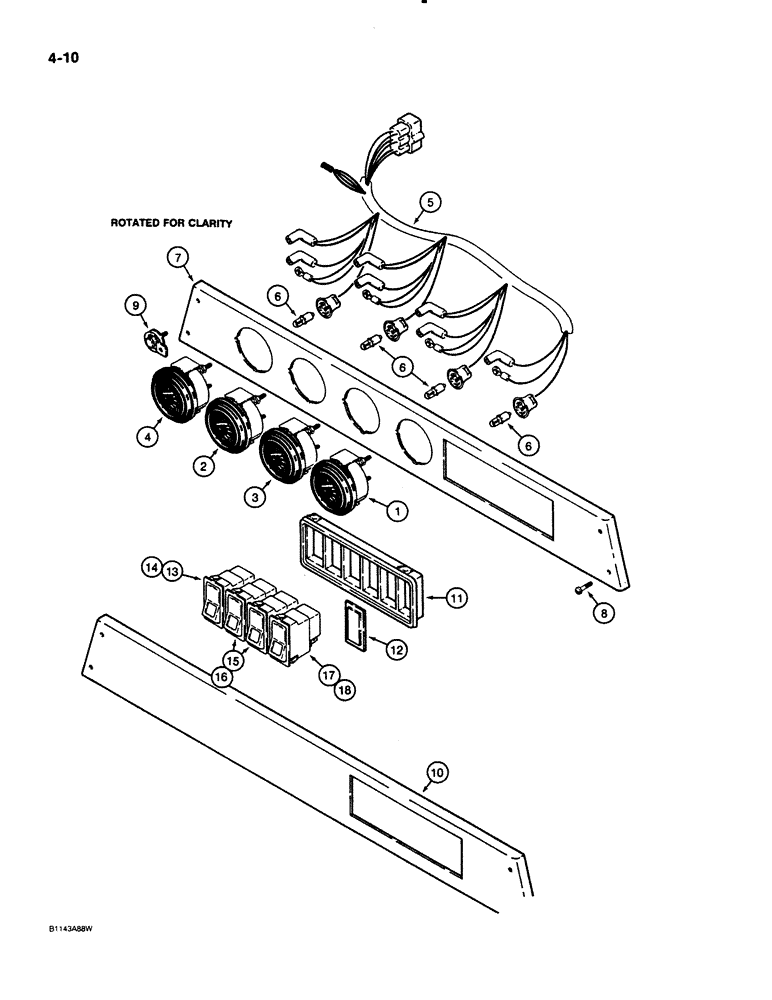

Запчасти Case 621 (4-10) - OPTIONAL GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

A187536

VOLTMETER

GAUGE - voltmeter

1шт.

2

A187537

OIL PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

3

A187538

PRESSURE GAUGE

GAUGE - transmission oil temperature

1шт.

4

A187539

PRESSURE GAUGE

GAUGE - air pressure

1шт.

5

A187633

HARNESS

- optional gauge

1шт.

6

T39215

BULB

- gauge, No. 1820

4шт.

7

1339563C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units with optional gauges

1шт.

8

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4" - 20 NC x 3/4", black

4шт.

9

S108406

RESISTOR

- air pressure gauge

1шт.

10

1339868C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units without optional gauges

1шт.

11

A187580

PANEL

- mounting, switch

1шт.

12

245918C1

LENS

PLUG - rocker switch, if used

1шт.

13

A187622

SWITCH

- rocker, windshield washer

1шт.

See Figure 9-100 and 9-102 for rocker switch decals.

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

15

A187621

SWITCH

- rocker, wiper, front and rear

2шт.

See Figure 9-100 and 9-102 for rocker switch decals, One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown on Figure 9-98.

1шт.

16

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

17

1913507C1

SWITCH ASSY

SWITCH - beacon

1шт.

See Figure 9-100 and 9-102 for rocker switch decals.

1шт.

18

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

19

353-401

PLUG,Dome, .312" hole, Nylon

- nylon, 5/16", used with item 7, 1339563C2, and item 10, 1339868C2, on units without lockup kit, not shown

4шт.
