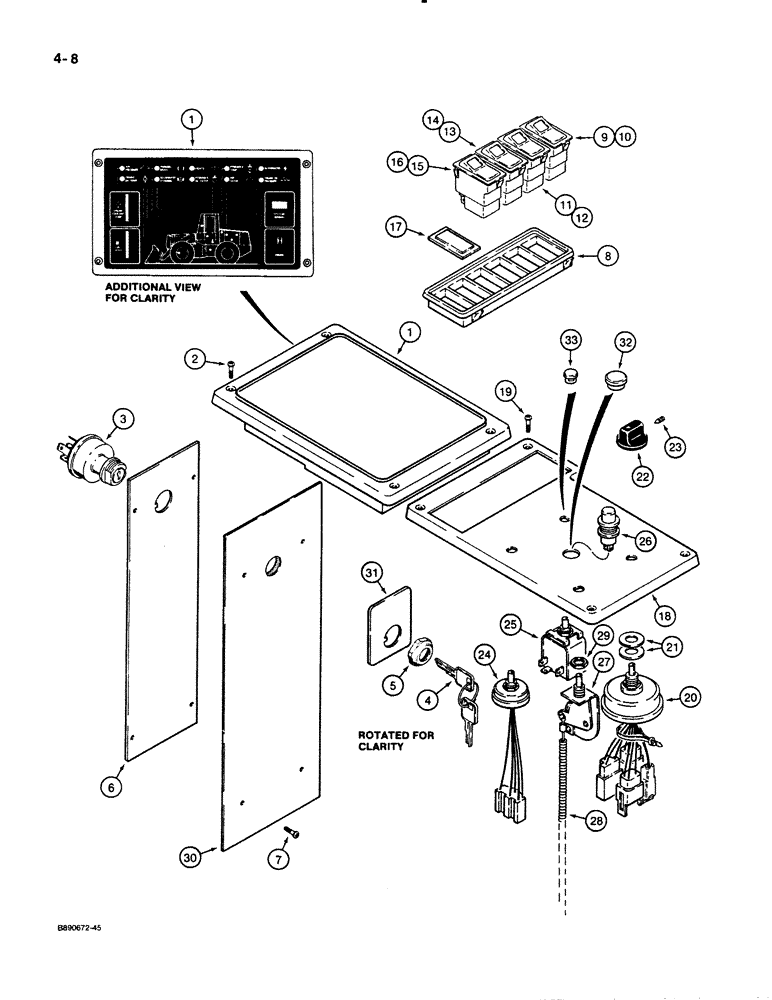

Запчасти Case 621 (4-08) - INSTRUMENT PANEL AND IGNITION SWITCH (04) - ELECTRICAL SYSTEMS

1

A187790

PANEL

- instrument, with graphics, monitoring system

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

185653A2R

REMAN-INSTR CLUSTER

621 (PRIOR TO S/N JAK0021701), Reman For New PN A187790

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

182-594

SCREW,Cross Pan Hd, #10-24 x 1"

- machine, pan Phillips head, 3/16 NC x 1 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

4

A77313

SET OF 2 KEYS

KEY - switch, includes set of two keys; metal without padding

1шт.

5

A77314

NUT

- hex, special, key switch mounting

1шт.

6

1339909C1

LARGE PLATE

PLATE - mounting, ignition switch

1шт.

7

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

8

A187580

PANEL

- mounting, switch

1шт.

9

A187762

SWITCH

- rocker, declutch selector

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

10

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

11

1913507C1

SWITCH ASSY

SWITCH - rocker, Serial Range: return-dig

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

12

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

13

1913507C1

SWITCH ASSY

SWITCH - rocker, height control

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

15

A187620

SWITCH

- rocker, return to transport and float, use on models prior to P.I.N. JAK0020286, stamped with 511.148

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

15

A187798

SWITCH

- rocker, return to transport and float, use on models P.I.N. JAK0020286 and after, stamped with 511.028

1шт.

See Fig. 9-100 and 9-102 for environmental control panel and rocker switch decals.

1шт.

16

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, included with A187620 or A187798, not shown

1шт.

17

245918C1

LENS

PLUG - rocker switch, if used

1шт.

18

1970047C3

PANEL

- control, environmental

1шт.

19

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

20

A187680

SWITCH

- lamp, five position

1шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

22

1339926C1

BUTTON

KNOB - control

4шт.

23

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, hex socket headless, No. 8 NC x 1/2 inch, cone point

4шт.

24

92100C2

SWITCH

- blower moter

1шт.

25

A187698

SWITCH

- thermostat, use on units with air conditioning

1шт.

26

A187881

LAMP

- No. 1820, pressure indicator, amber lens, replaced A186299 lamp with red lens, use on units with air conditioning

1шт.

1977535C1

CABLE

ASSEMBLY - heater, for service order items 27, switch and 28, cable

1шт.

27

1954651C1

SWITCH

- heater

1шт.

28

1954648C2

CABLE

- heater

1шт.

29

109311H

JAM NUT

- hex jam, 7/16 inch - 28 thread

1шт.

30

1969939C1

LARGE PLATE

FOAM - ignition door

1шт.

31

1339931C1

LARGE PLATE

PLATE - ignition switch

1шт.

32

353-403

PLUG,Dome, .437" hole, Nylon

Used on units without air conditioning Dome, .437" hole, Nylon

1шт.

33

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16", used on units without air conditioning

1шт.

34

S300775

SWITCH

- rocker, FACT coupler, not shown, see note below

1шт.

35

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.
