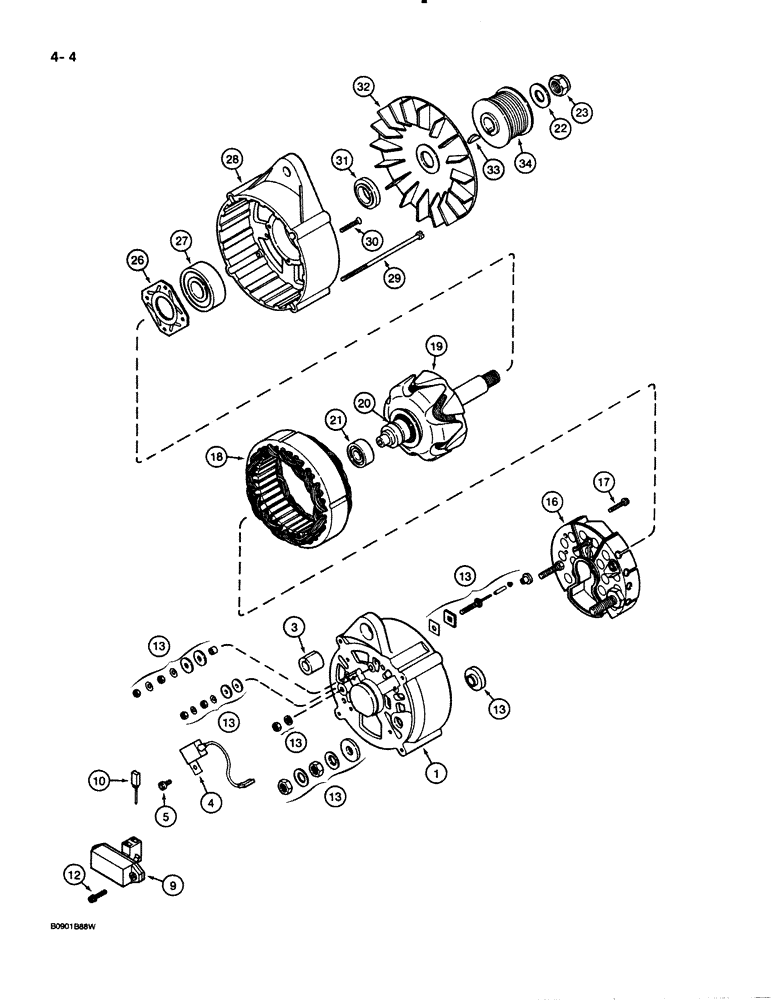

Запчасти Case 621 (4-04) - ALTERNATOR ASSEMBLY, 65 AMPERE, 24 VOLT (04) - ELECTRICAL SYSTEMS

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - for 24 volt system

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

621 CASE WHEEL LOADER (PRIOR TO S/N JAK0021701) (NORTH AMERICA), ALTERNATOR ASSEMBLY, for 24 volt system, 65 AMPERE

1шт.

1964860C1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297240

REMAN-ALTERNATOR

Remanufactured ALTERNATOR

1шт.

87297241

CORE-ALTERNATOR

Return Part Number

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 v 65a Alternator

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - alternator

1шт.

5

1964969C1

SCREW

SCREW - fillister head, capacitor retaining

1шт.

9

1964967C1

VOLTAGE REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.

10

1964968C1

COMMUTATOR BRUSH

BRUSH SET - alternator

1шт.

12

A186194

SCREW,M4 x 18mm

SCREW, Sltd Truss Hd, M4 x 18, w/LW

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

16

1964965C1

RECTIFIER

BRIDGE - rectifier

1шт.

17

A187504

SCREW

BOLT - retaining,rectifier bridge

2шт.

18

1964966C1

STATOR

STATOR - alternator

1шт.

19

1964964C1

ROTOR

ROTOR - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

195-107

WASHER,9/16"

WASHER - flat, , plated 9/16"

1шт.

23

131-56

LOCK NUT,5/8"-18, GB

NUT - hex, lock, 5/8" - 18 NF

1шт.

26

1964727C1

PLATE

PLATE - retaining, bearing

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - retaining, alternator

4шт.

30

1964750C1

SCREW

SCREW - flat head, retaining

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

33

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

ref #33, remove from text & artwork. not used here.

1шт.

34

J913435

PULLEY

PULLEY - drive

1шт.

ref #34, should be a189616 pulley which has no keyway.

1шт.
