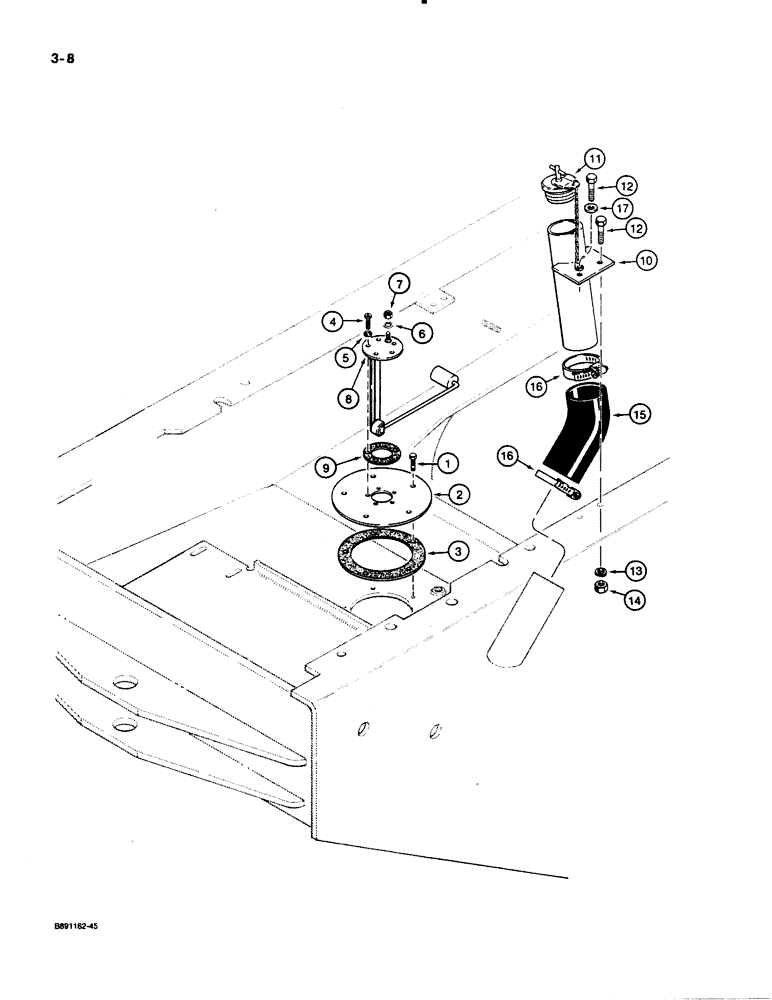

Запчасти Case 621 (3-08) - FUEL TANK FILLER AND SENDER, P.I.N. JAK0020901 AND AFTER (03) - FUEL SYSTEM

1

L108414

BOLT

- special, self sealing, zinc plated

5шт.

2

L118872

LARGE PLATE

PLATE - tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- tank access cover

1шт.

4

163-32

SCREW,Hex, #10 - 24 x 1/2"

- machine, No. 10 - 24 NC x 3/4", black cadmium

5шт.

5

L115306

WASHER

- special, sealing

5шт.

6

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

129-37

NUT,#10-32

- hex, No. 10 - 24 NC, plated

1шт.

8

L124069

PROBE

SENDER - fuel tank

1шт.

9

A11822

GASKET

- sender

1шт.

10

L127146

PIPE

- filler

1шт.

11

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8 NC x 1-1/4 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

L127180

FUEL HOSE

HOSE - filler pipe

1шт.

16

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.
