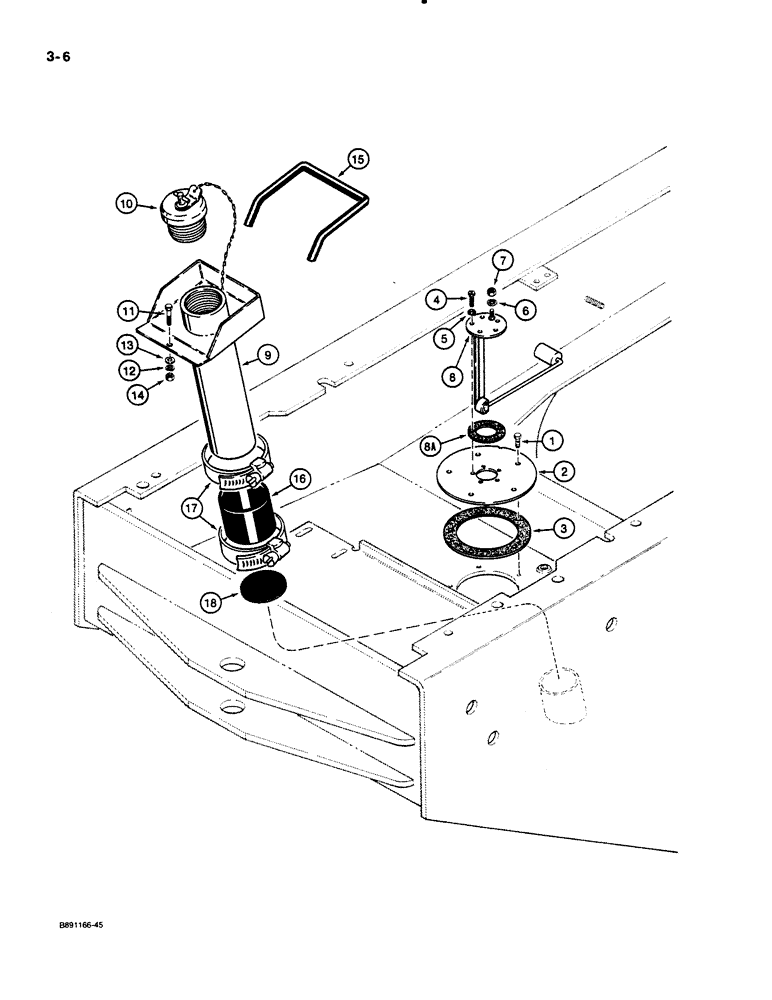

Запчасти Case 621 (3-06) - FUEL TANK FILLER AND SENDER, PRIOR TO P.I.N. JAK0020901 (03) - FUEL SYSTEM

1

L108414

BOLT

- special, self sealing, zinc plated

5шт.

2

L77441

PLATE

- tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- tank access cover

1шт.

4

163-32

SCREW,Hex, #10 - 24 x 1/2"

- machine, No. 10 - 24 NC x 3/4", black cadmium

5шт.

5

L115306

WASHER

- special, sealing

5шт.

6

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

129-37

NUT,#10-32

- hex, No. 10 - 24 NC, plated

1шт.

8

L124069

PROBE

SENDER - fuel tank

1шт.

8a

A11822

GASKET

- sender

1шт.

L119011

PIPE

AND CAP - fuel filler

1шт.

9

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

10

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

11

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4", zinc plated

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

1шт.

15

D39366

LINING

TRIM - edge, 20" (508 mm) long

1шт.

16

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

18

L77398

STRAINER ELEMENT

SCREEN - fuel filler

1шт.
