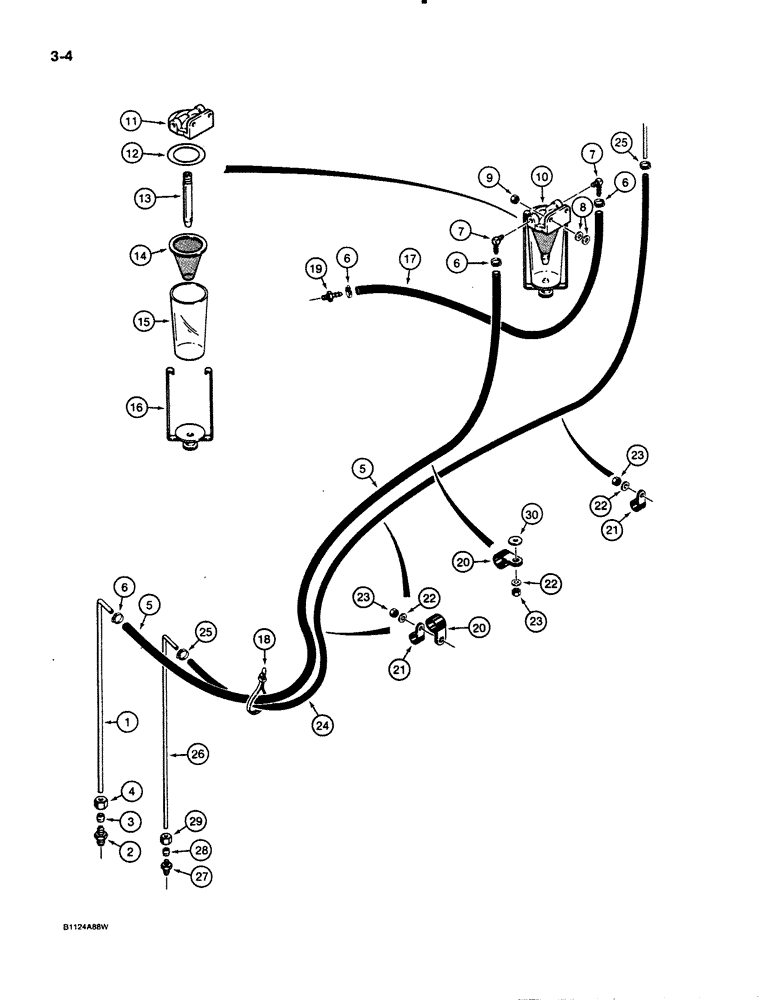

Запчасти Case 621 (3-04) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - fuel

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - straight

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- adapter

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - compression adapter

1шт.

5

850569C1

HOSE,0.38" ID x 77.00", SAE30R2 Type 1

Tank to Strainer 0.38" ID x 77.00", SAE30R2 Type 1

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- barb, 90 degree

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, special, cadmium plated

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel

1шт.

11

R21356

HOUSING

BODY - sediment bowl

1шт.

12

R21357

GASKET

- sediment bowl

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

14

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

15

R21361

BOWL

- sediment

1шт.

16

R21358

CLAMP

RETAINER - sediment bowl

1шт.

17

178968C2

HOSE,0.38" ID x 12.50", SAE 30R2 TYPE1, CLASS 1

Strainer to Pump 0.38" ID x 12.50", SAE 30R2 TYPE1, CLASS 1

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight

1шт.

20

T42284

CLAMP

- hose, large

3шт.

21

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hose, small

3шт.

22

495-21044

WASHER,3/8"

4шт.

23

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

24

L124347

FUEL HOSE

HOSE - 3/16" (5 mm) ID x 78-3/4" (2000 mm) long, fuel return

1шт.

25

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

26

L119110

FUEL TUBE,4.75 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

L112236

CONNECTOR, ELEC

CONNECTOR - compression, straight

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

28

222-101

SLEEVE,3/16" Tube

- compression fitting

1шт.

29

222-111

TUBE NUT,7/16" - 24

NUT - compression fitting

1шт.

30

S95569

WASHER

- flat, 1/2", hardened, plated

1шт.
