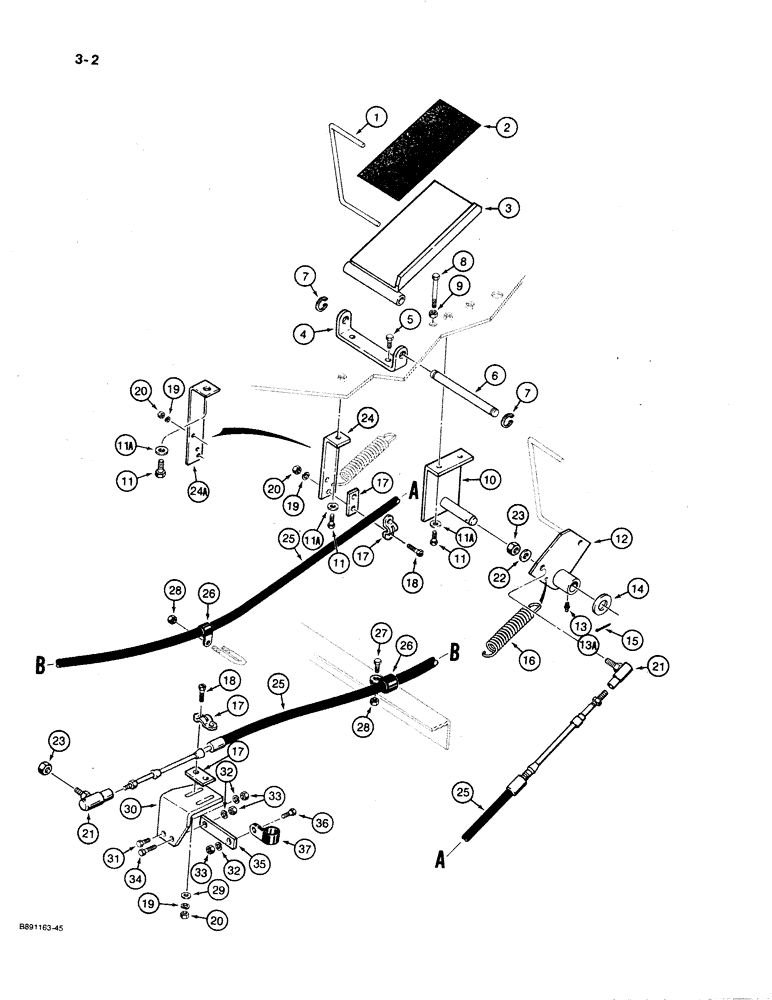

Запчасти Case 621 (3-02) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

1339978C1

STEM

ROD - accelerator, foot, Serial Range: pedal-bellcrank

1шт.

2

L71193

ANTI-SKID STRIP

- accelerator pedal

1шт.

3

1969946C1

PEDAL

- accelerator, foot

1шт.

4

1969948C1

SUPPORT

MOUNT - accelerator pedal

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

1969947C1

ROD

- pivot, pedal

1шт.

7

G46146

SNAP RING,#37, Ext

Ring, Snap, , rod #37, Ext

2шт.

8

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

9

113-2286

BOLT,Hex, 3/8" - 16 x 4", Gr 5

NUT - hex, 3/8" - 16 NC, zinc plated (Replaces 425-106)

1шт.

10

1969944C2

SUPPORT

BRACKET - accelerator pivot

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

11a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

12

1339981C2

LEVER ASSY.

LEVER - accelerator bellcrank

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch, if used

1шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, if used 1/4"-28 NPT x .54" lg

1шт.

14

195-2069

WASHER,21/32" x 15/16" x .134"

- flat, 5/8", special, zinc plated

1шт.

15

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

16

L106237

SPRING

- accelerator return

1шт.

17

L12441

CLAMP

- cable

2шт.

18

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex head, No. 10 - 24 NC x 3/4", plated

4шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

21

A76747

BALL JOINT,#10 -32 x 7/8" L

- ball

2шт.

22

495-21031

WASHER,1/4"

- flat, , zinc plated 1/4"

1шт.

23

19694R1

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4" - 28 NF, thin

2шт.

24

1339623C1

BRACKET

- cable mounting, prior to P.I.N. JAK0020901

1шт.

24a

L127151

SUPPORT

BRACKET - cable mounting, P.I.N. JAK0020901 and after

1шт.

25

L124346

CABLE ASSY.,2180mm L

CABLE - accelerator

1шт.

26

49845

CLAMP

- cable

2шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

28

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

29

495-21025

WASHER

- flat, No. 10, zinc plated

2шт.

30

L124502

SUPPORT

BRACKET - cable mounting, at engine

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex head, 1/4" - 20 NC x 1", zinc plated

1шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, zinc plated

3шт.

35

S90716

LARGE PLATE

BAR - bracket mounting

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", zinc plated

1шт.

37

49833

CLAMP

- cable

1шт.

34

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
