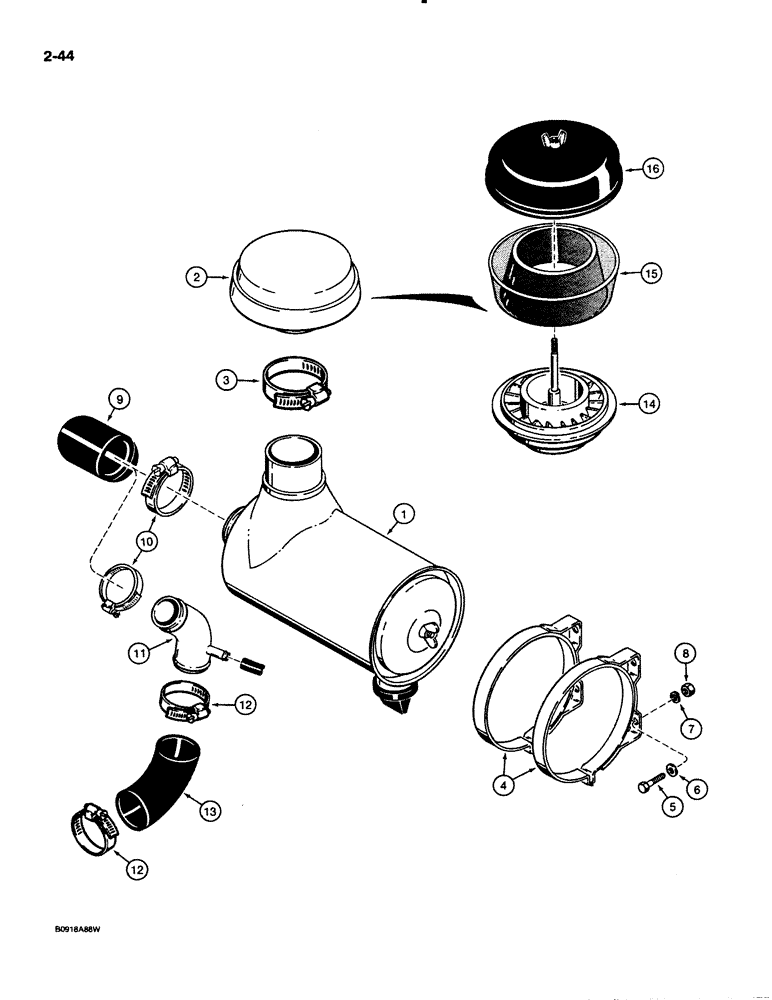

Запчасти Case 621 (2-44) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-46

1шт.

2

L10659

CAP

- air cleaner

1шт.

3

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cap

1шт.

4

A149780

BAND

- air cleaner mounting

2шт.

5

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

6

495-21044

WASHER,3/8"

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

S112515

ELBOW

- 90 degree, rubber, reducing, at air cleaner

1шт.

10

L124635

HOSE CLAMP

CLAMP - elbow to air cleaner and hose

2шт.

11

L118977

TUBE

- air cleaner to engine and air compressor tube

1шт.

12

L115549

CLAMP,69.85mm - 92.08mm

- elbow to tube and turbocharger

2шт.

13

L17181

ELBOW

- 90 degree, rubber, at turbocharger

1шт.

A171342

PRECLEANER

ASSEMBLY - air cleaner, if used

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

15

277377R1

FILTER BOWL

BOWL - precleaner

1шт.

16

A42465

COVER

- precleaner

1шт.
