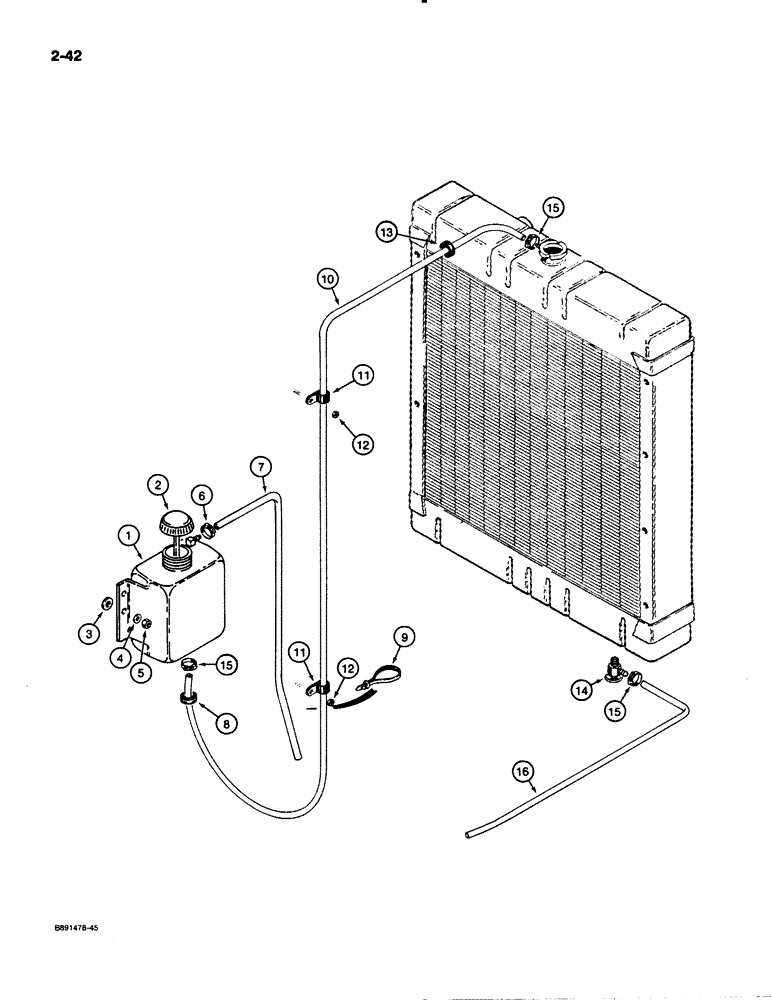

Запчасти Case 621 (2-42) - COOLANT RECOVERY SYSTEM, P.I.N. JAK0020901 AND AFTER (02) - ENGINE

1

A172993

RESERVOIR

- coolant recovery

1шт.

2

A184079

CAP

- coolant recovery reservoir

1шт.

3

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

5

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

overflow hose to reservoir #4, 0.25/0.62 Type F Worm

1шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Reservoir Drain 7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

8

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- hose

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

L127712

HOSE,7.9 mm ID x 1500.00 mm, SAE 30R6 or SAE 20R4 Class D1

Radiator to Reservoir 7.9 mm ID x 1500.00 mm, SAE 30R6 or SAE 20R4 Class D1

1шт.

11

49768

CLIP

- reservoir hose to radiator guard

2шт.

12

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

13

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- hose

1шт.

14

A27862

COCK, DRAIN

VALVE - drain, radiator

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

radiator overflow and drain valve #4, 0.25/0.62 Type F Worm

3шт.

16

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Cut From A21561 Hose, See Below 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
