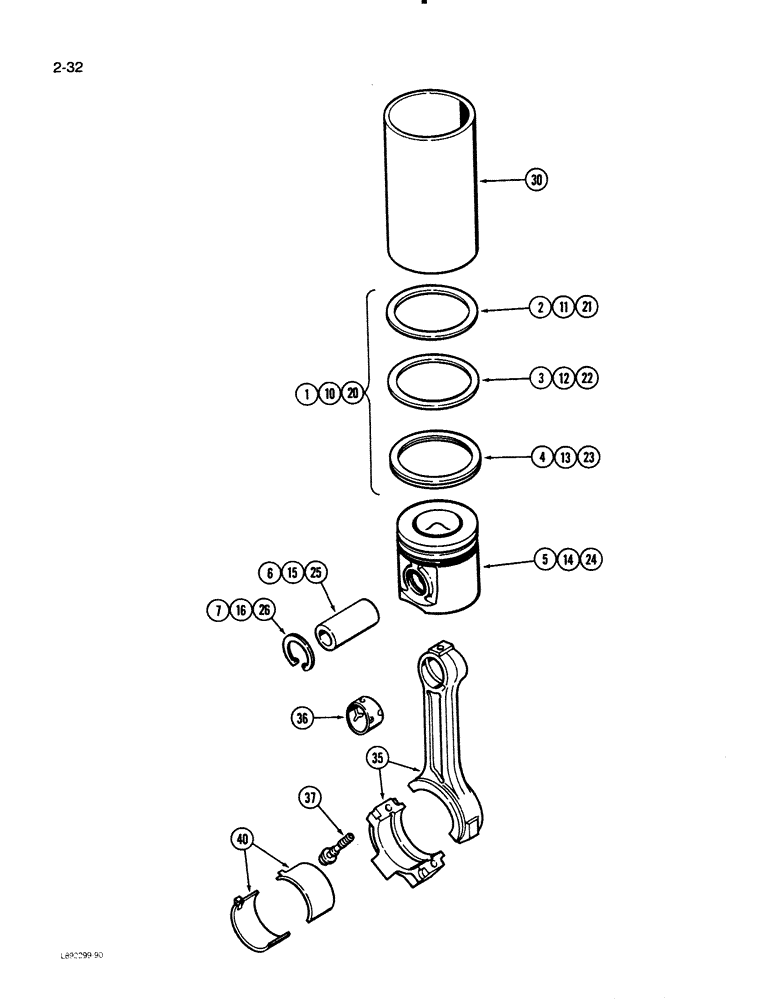

Запчасти Case 621 (2-32) - PISTONS, 6T-590 ENGINE (02) - ENGINE

A77419

PISTON

KIT - engine, standard

6шт.

1

A77500

PISTON RING SET

RING KIT - piston, standard

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard (Stamped 7163)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77638

PISTON

KIT - engine, 0.5 mm oversize

6шт.

10

A77501

PISTON RING SET

RING KIT - engine, 0.5 mm oversize

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize (Stamped 8815)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77637

PISTON

KIT - engine, 1.0 mm oversize

6шт.

20

A77502

PISTON RING SET

RING KIT - engine, 1.0 mm oversize

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77419 piston kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new

6шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

35

84145405R

REMAN-CONNECTING ROD

621 PRIOR TO S/N JAK0021701, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order J901569)

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, 11 mm - 1 x 26 mm, connecting rods

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod, upper and lower, standard (Set)

6шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod, upper and lower, 0.25 mm undersize (Set)

6шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod, upper and lower, 0.50 mm undersize (Set)

6шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod, upper and lower, 0.76 mm undersize (Set)

6шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod, upper and lower, 1.00 mm undersize (Set)

6шт.
