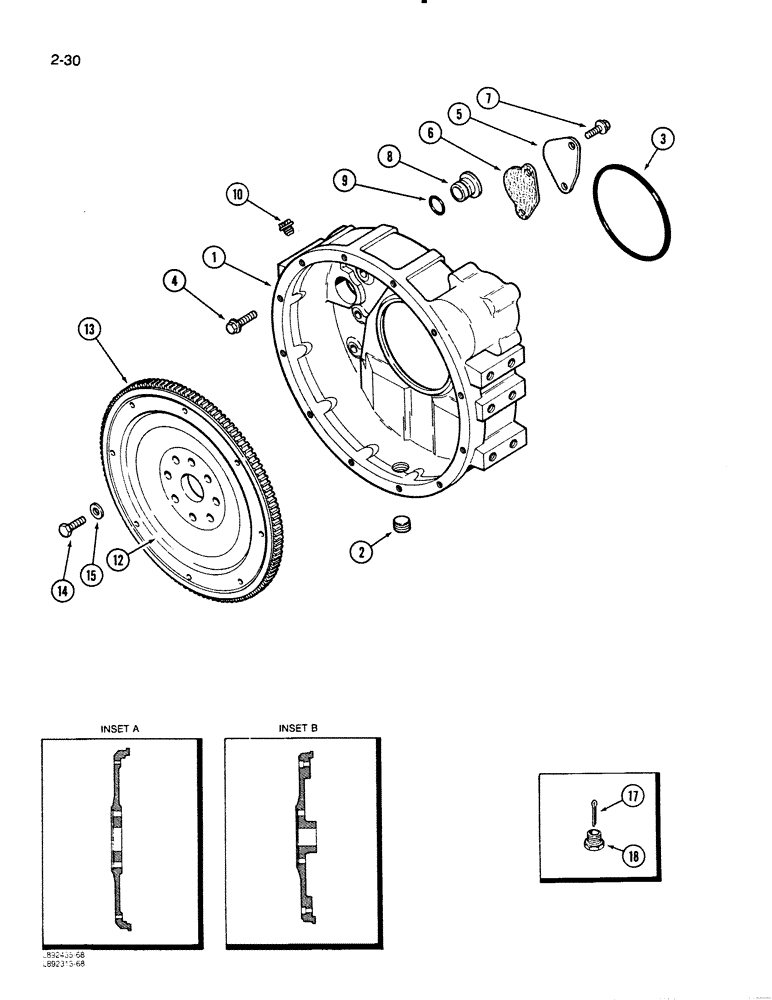

Запчасти Case 621 (2-30) - FLYWHEEL AND HOUSING, 6T-590 ENGINE (02) - ENGINE

1

J903282

HOUSING

- flywheel

1шт.

2

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - housing drain

1шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing

1шт.

4

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

Housing retaining Hex Flg, M12 x 40, 10.9

8шт.

5

J908095

PLATE

- cover

1шт.

6

J908096

GASKET

- cover plate

1шт.

7

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

8

J910248

PLUG

- housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Sealing -212, 70 Duro, .859" ID x .139" Thk

1шт.

10

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.

12

J911220

FLYWHEEL

ASSEMBLY - engine (Includes Ref 13) (See Inset A)

1шт.

12

J918946

FLYWHEEL

ASSEMBLY - engine (See Inset B)

1шт.

Ref #12A - J915087 Flywheel (Used with ZF WG180 Transmission S/N JAK0020901 thru JAK0021701) 04/19/96

1шт.

Ref #12 - (Used prior to S/N JAK0020900 that had Clark Transmissions) 04/19/96

1шт.

13

J905427

GEAR

- ring, flywheel

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm - 1.25 x 32 mm

8шт.

15

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

17

132-118

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), 7/32" x 1"

1шт.

18

L113178

PLUG

BUSHING - reducer

1шт.
