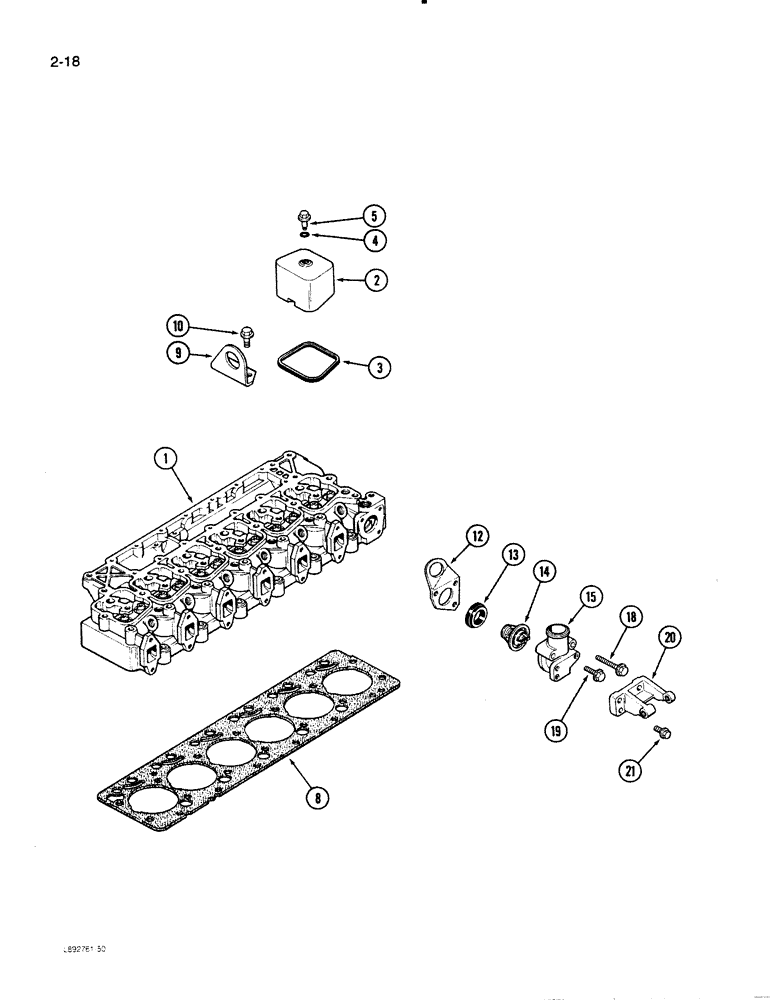

Запчасти Case 621 (2-18) - CYLINDER HEAD COVER, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-20)

1шт.

2

J902604

COVER

- rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J907049

BOLT,Hex

- special, 8 mm - 1.25 x 21 mm

6шт.

8

J917358

GASKET

- head, standard (1-Notch)

1шт.

8

J917359

GASKET

- head, 0.23 mm thicker (2-Notches)

1шт.

8

J917360

GASKET

- head, 0.51 mm thicker (3-Notches)

1шт.

10

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm

2шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J903301

GASKET

- housing, thermostast

1шт.

14

J917324

THERMOSTAT

- water (Replaces J912587), housing

1шт.

15

J914409

HOUSING

- thermostat

1шт.

18

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 70 mm, Thermostat and housing

2шт.

19

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 35 mm, Thermostat and housing

1шт.

20

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

21

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 x 25 mm, Thermostat and housing

3шт.
