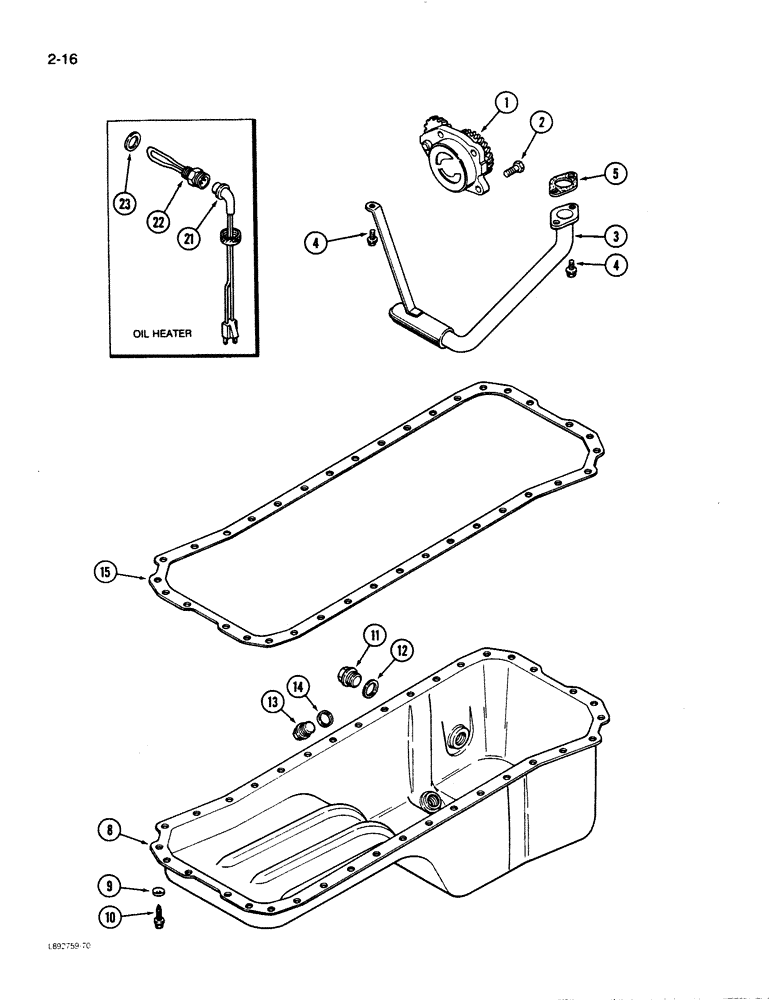

Запчасти Case 621 (2-16) - OIL PUMP AND OIL PAN, 6T-590 ENGINE (02) - ENGINE

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (New)

1шт.

1

JR937404

REMAN-ENG OIL PUMP

1шт.

1

JC937404

CORE-ENGINE OIL PUMP

Return number

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

3

J909373

TUBE

TUBE AND SCREEN - oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex, 8 mm - 1.25 x 16 mm

3шт.

5

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

8

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

9

J907537

SPRING WASHER

WASHER - spring

36шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, 18 x 16 mm

36шт.

11

J904386

PLUG

PLUG - pipe, heater hole, 18 mm

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

14

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

A77676

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 5, 14 and 15

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

21

J905113

CABLE

CABLE - engine block heater, oil

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490), engine oil

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, engine oil heater

1шт.
